product presentation

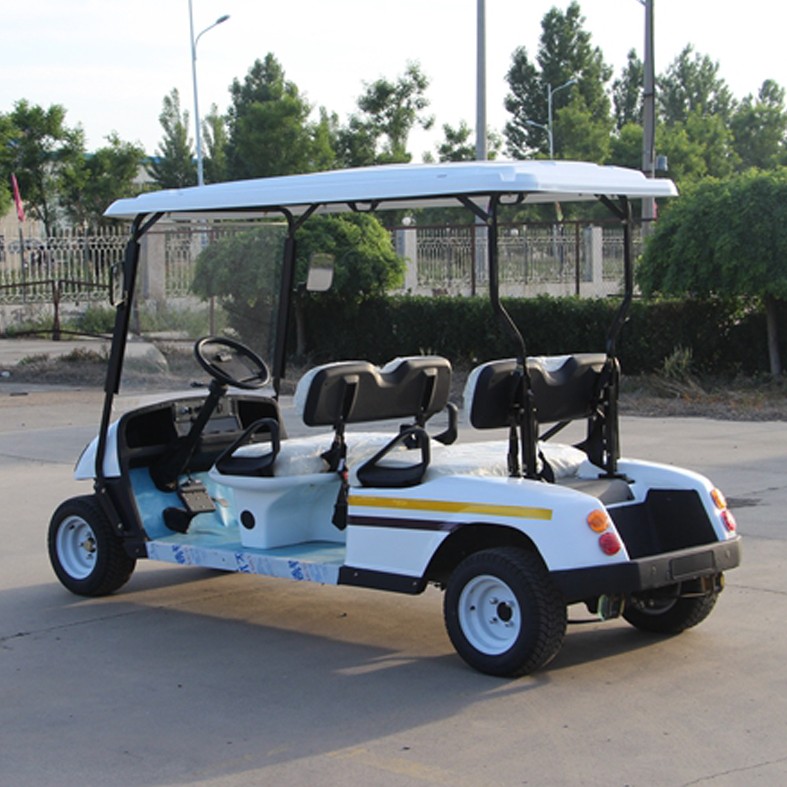

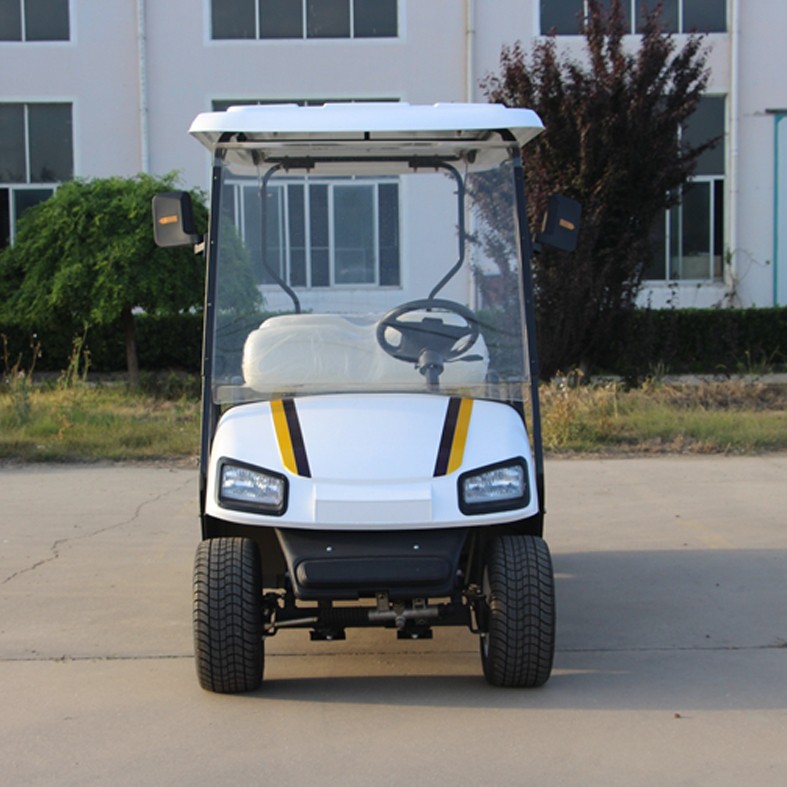

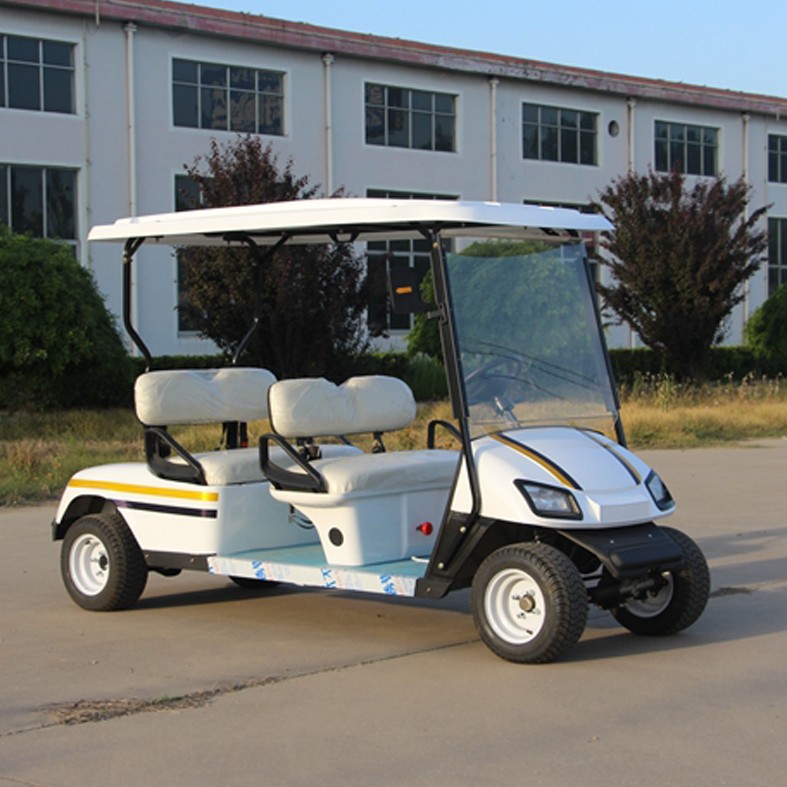

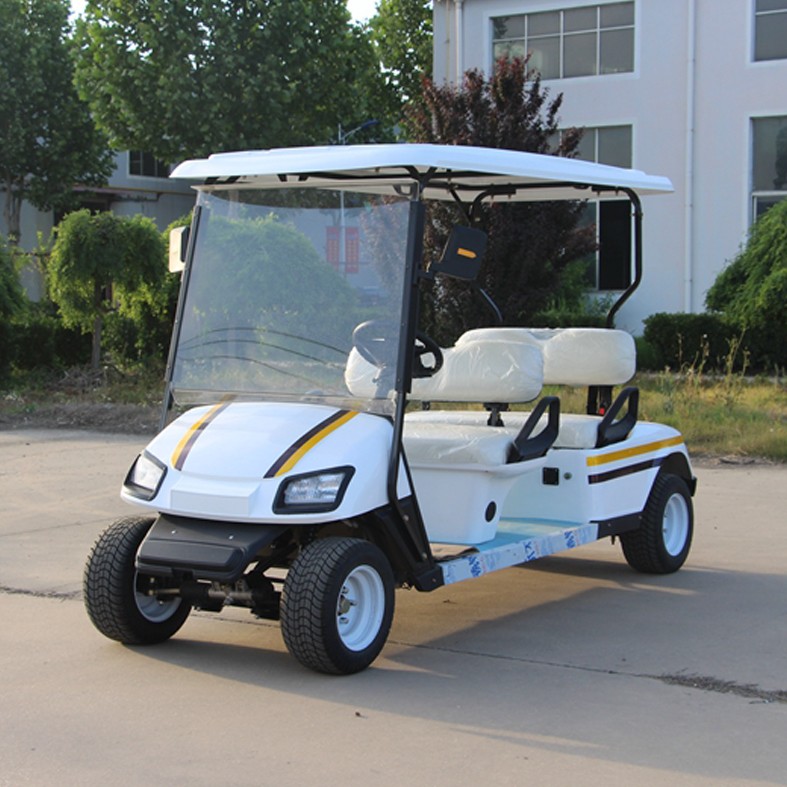

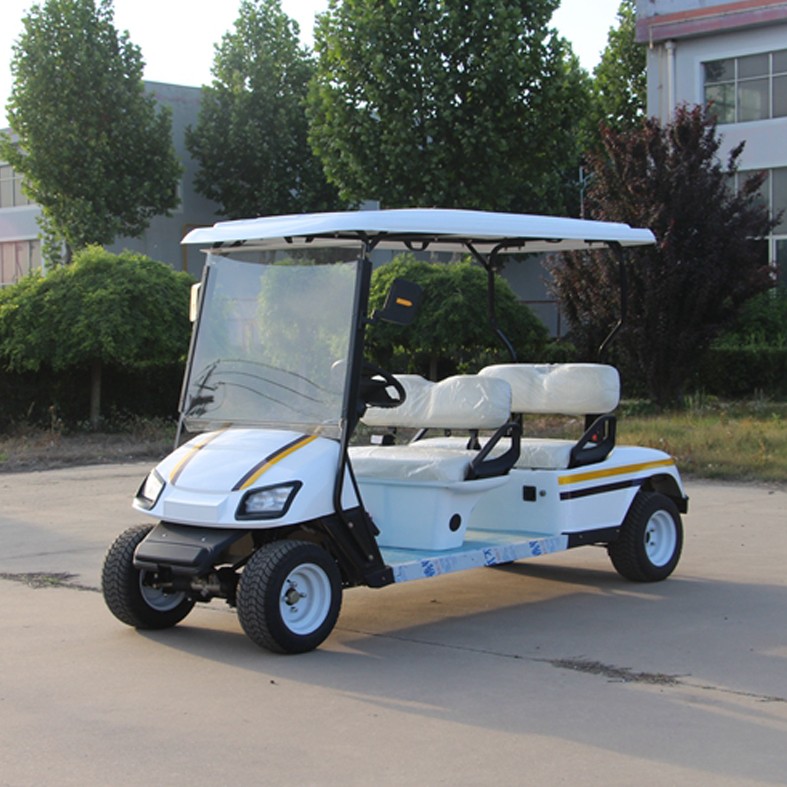

This classic four seater electric sightseeing car uses McPherson independent front suspension on the front axle and rear axle. The suspension can increase the space in the cab and improve the handling stability of the whole vehicle. The steering wheel height and inclination are adjustable, with instrument monitoring system. Red instrument panel transmission lighting, speedometer with electronic pulse sensor, integral control combination instrument, equipped with multi-function indicator.
Product parameters
Electrial System
|
Controller
|
60V Inbol intelligent controller
|
Storage Battery
|
12V*5PCS,100AH
|
Battey charge
|
Vehicle-mounted intelligent charger
|
Charger Voltage
|
Single phase,220V
|
Motor
|
Hanpuda 3500W alternator
|
Endurance Mileage
|
90-120km
|
Charging Time
|
8-10Hours
|
Gw
|
500 KGS
|
Technicial Data
|
Overall Size
|
3100*1200*1850mm(L*W*H)
|
Max.Passenger
|
4 People
|
Max.Speed
|
20-30km/h
|
Full Loading Gradeability
|
25%
|
Wheel Base
|
1650 MM
|
Body Material
|
plastic
|
Chassis Materia
|
Metal
|
Braking Length
|
≤4 Meters
|
Min.Turning Tadius
|
3500 MM
|
Front and Rear Tracks
|
870/870 MM
|
Car Body Systen
|
Seat Material
|
Imitation leather (PU)
|
Instrument Panel
|
Combined instrument(front/back signallight trumpet,dump energycurrent speed display)
|
Lighting System
|
Combined type front light and back light,braking light front/back turning light
|
Switch System
|
Light switch,main power switch,electric horn,wiper switch.
|
Entertainment System
|
MP3 Player.
|
Car Body Painting
|
Color can be customized.
|
Chassis System
|
Drive System
|
Rear-drive motor;Controller adjusted automatically
|
Steering System
|
Automatic adjustment rack and pinion direction
|
Braking System
|
Four wheel hydraulic brake +double circuit hydraulic brake +parking brake device +brake assist
|
Tire Details
|
205-50-10,Aluminium wheel hub,vacuum tire
|
Front Axle and Suspension
|
Integral front bridge suspension
|
Back Axle and Suspension
|
Integral front bridge suspension
|
Product features and applications
This classic four seat electric sightseeing car is a high comfort stadium car. Compared with ordinary sightseeing cars, the whole car adopts three-dimensional simulation design and is designed according to ergonomics to make passengers feel more comfortable. The stability of the accelerator pedal of this model enables self driving tourists to control the vehicle quickly. It is used in golf courses, resorts, villas, Garden hotels, scenic spots and other places. From golf courses, villas, hotels, schools to private users, they will be short-distance transportation.
