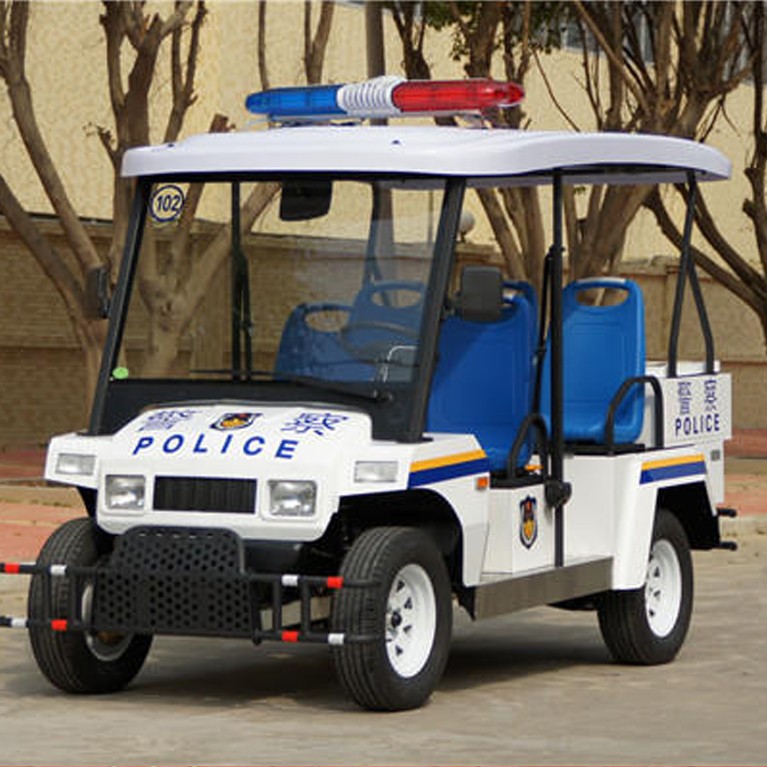

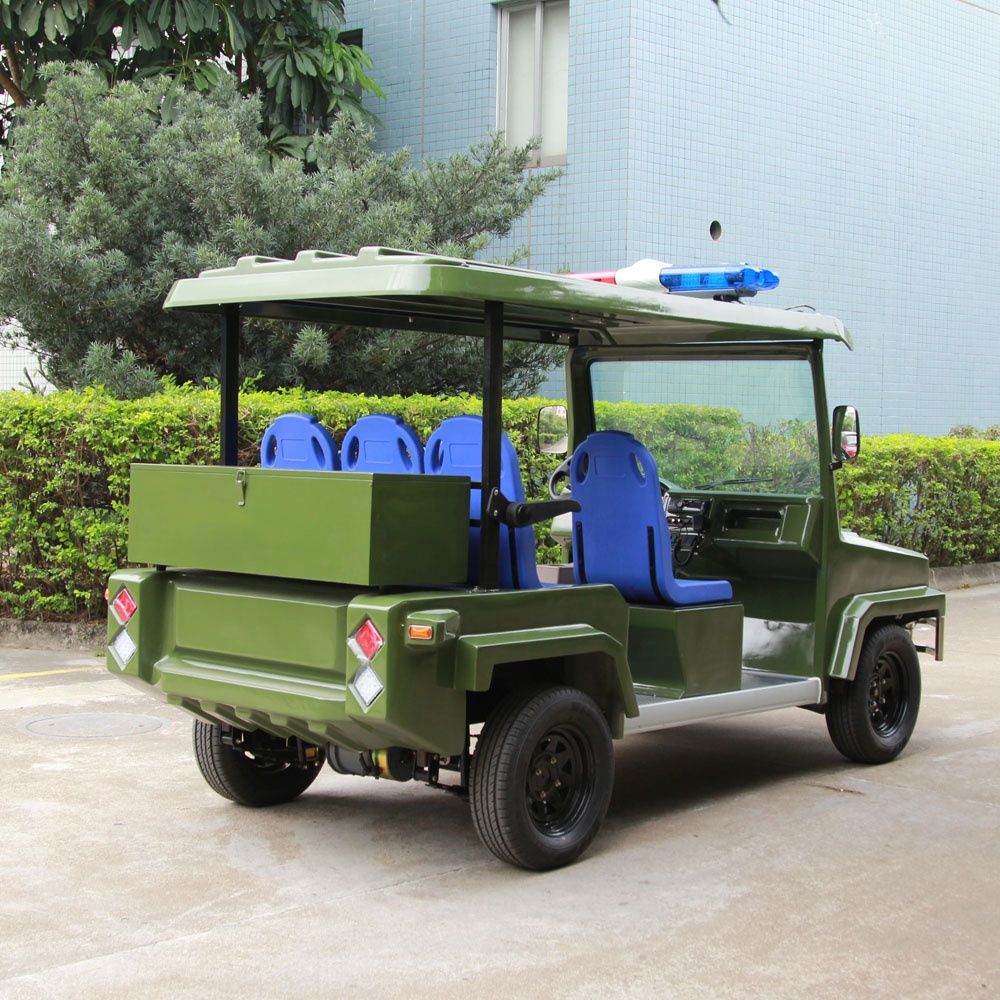

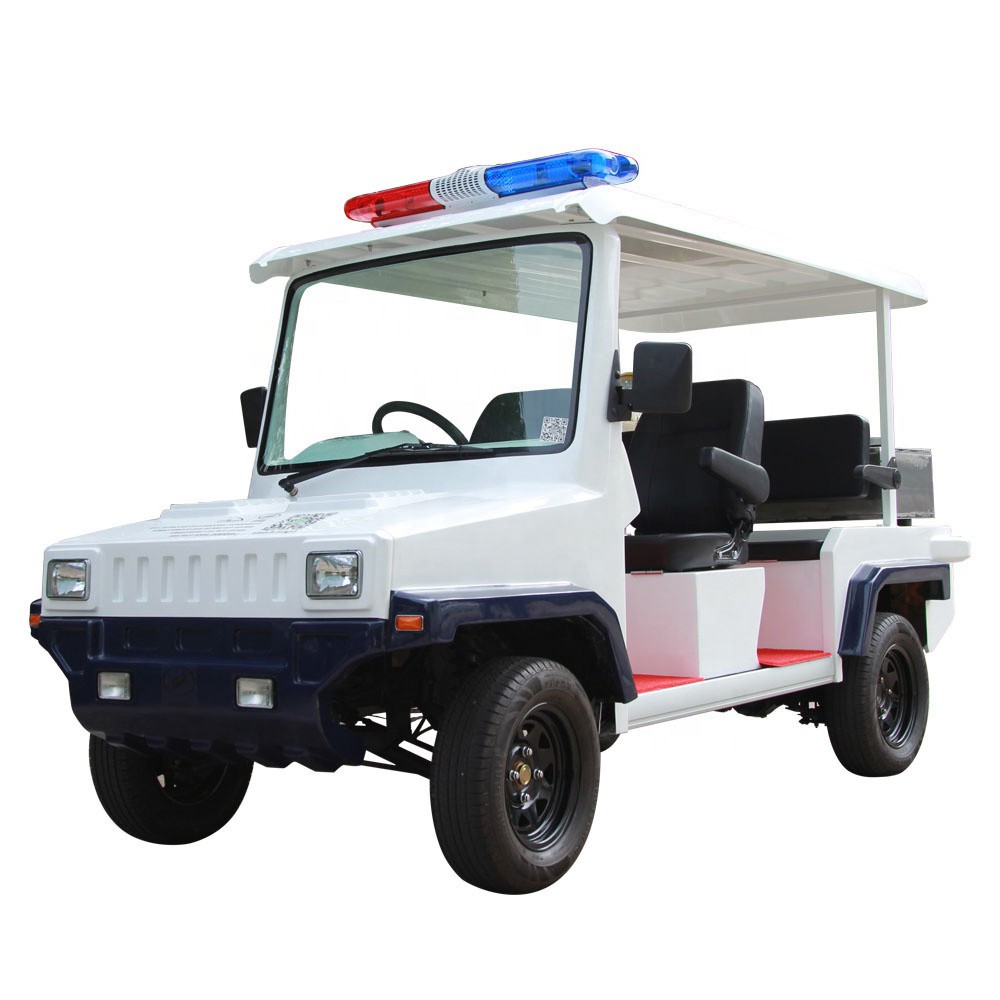

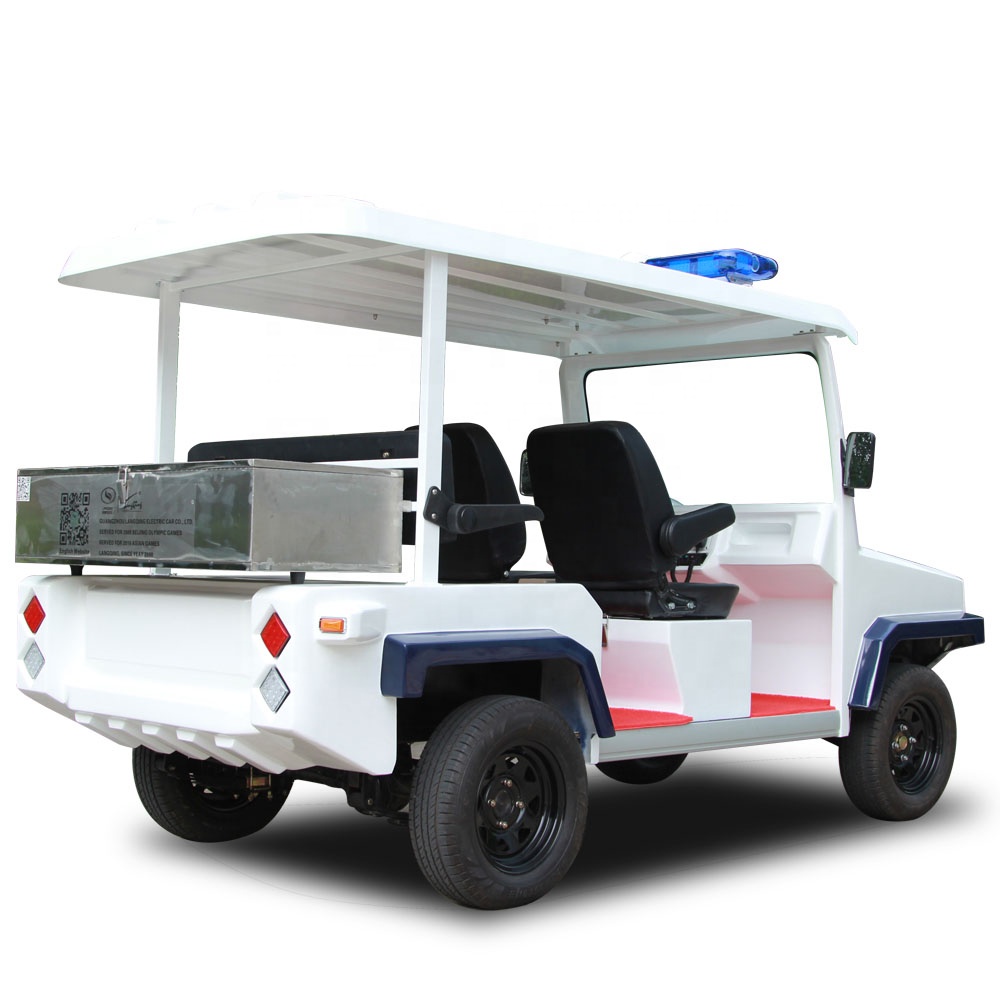

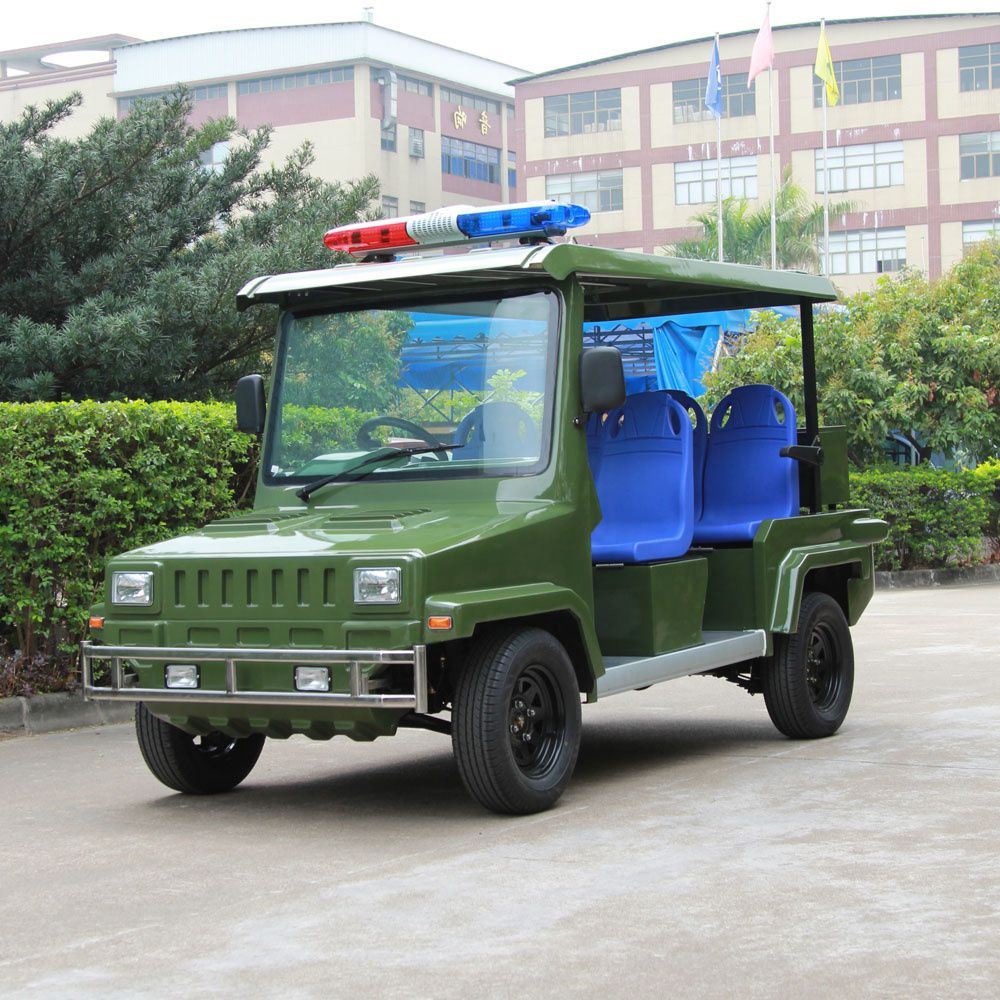

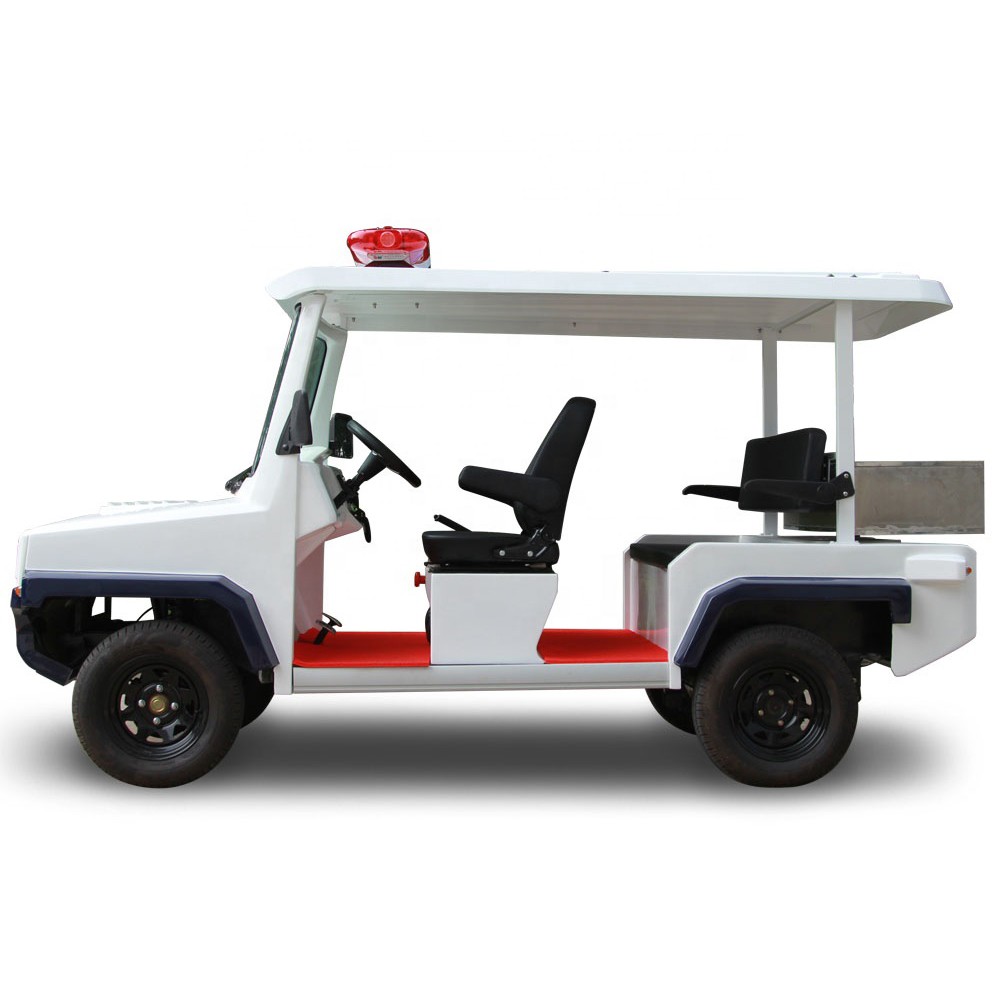

Classic Hummer electric patrol vehicle 5 seats presentation
This is a classic Hummer electric patrol car with open design, which can seat 5 people. There are no obstructions around the car, and the visual field effect is good. The personnel sitting in the car can clearly see the surrounding environment. If there are abnormal conditions ahead, the car can quickly speed up and reach the abnormal place. When sitting on it, patrol personnel can see further places, understand the surrounding dynamics, and rush to abnormal places in time.
Product parameters
Passenger capacity
|
5 seats
|
Max.Speed
|
28km/h
|
Range(loaded)
|
85km
|
Climbing Ability(loaded)
|
25%
|
Braking Distance
|
≤4m
|
Min.Turning Radius
|
6m
|
Min.Clearance
|
150mm
|
Recharge time
|
8~10h
|
L×W×H
|
3460×1500×2020mm
|
F/R Tread
|
1260/1270mm
|
Axle Distance
|
2200mm
|
Curb Weight
|
840kg
|
Max.loading
|
425kg
|
Motor
|
48V/4KW DC motor
|
Controller
|
48V/275A controller
|
Battery
|
Free-maintenance Battery 48V
|
Body &Roof
|
High impact fiber glass
|
Windshield
|
See-through Laminated glass
|
Seats
|
High impact fiber glass
|
Rear view mirror
|
2pcs
|
Bumper
|
Front
|
Tire
|
155/80 R12 Radial tire (Auto tire)
|
Chassis
|
Welded tubular steel with rust-proof powder coated paint
|
Steering
|
Recirculating ball steering gear
|
Front Suspension
|
The MacPherson Strut suspension system,coil spring+shock absorber
|
Rear suspension
|
Leaf spring+shock absorber non-independent suspension
|
Lighting system
|
2 headlights,2 front turn signals,2 rear turn signals and 2 rear brake lights,Police light bar
|
Sound system
|
Radio and MP3 player;Speaker
|
Brake system
|
2-front wheel disc brake +2-rear wheel hydraulic drum brake system +handbrake
|
Charger
|
Output:48V/25A,Input AC 220V/50HZ
|
Dashboard
|
Combined Dashboard
|
Product features and applications
The most remarkable advantages of this Hummer electric patrol vehicle are flexibility, low noise, energy saving and improved work efficiency. It is suitable for use in places with a large number of people. Walking through the busy streets, there will be no huge noise. The electric patrol car has low noise and will not affect the daily life of residents when used. Therefore, it is very suitable for use in residential areas, parks, schools, factories, docks, stations and other places. The car is flexible and can shuttle through smaller alleys, greatly improving work efficiency.
Product details
Company size
Delivery of shipments and services
FAQ
Q1 How to place an order?
1) Contact customer service to confirm the freight and product model, configuration, quantity and other details (you can also arrange your own freight forwarder);
2) We provide you with a proforma invoice containing all product details in accordance with your final decision;
3) You need to arrange 30% payment to our bank account, then we will prepare the product to start production (the cycle is generally about 10 days, can be specially configured for your order quantity delivery);
4) After the product is completed, we will pay the remaining payment and arrange delivery by our forwarder (or we can provide relevant information and arrange forwarder transportation by ourselves).
5) Upon completion of this process, customer service will track the location of the product and notify you of its imminent arrival and arrival so that you can quickly prepare for customs clearance and other related issues.
Q2 What does your FOB reference price include?
A: FOB includes costs only. If you do not have your own freight forwarder, please provide us with the port country/region near you and we will quote cif including freight.
Q3 What is your warranty service?
A: We offer a one-year warranty for the motors, batteries and controllers.
Q4 Why can't I use Courier service and order by myself?
A: Packaged, the product is bulky and contains a large number of batteries. It can be transported by rail but the cost is too high (the appearance of the product may wear out).
Q5 What if I still insist on home delivery?
A: Please provide your address and then we can check the details and arrange.
Q6 What is your production/delivery time for ?
A: The production/delivery time will be controlled within 30 days (generally 10 days can be shipped, simple configuration is 2-3 days).
Q7 Do you test everything before shipping?
A: Yes, we have passed 100% testing before shipment (basic equipment testing also includes roads, hill climbing, rain, water crossing roads, etc.).
Q8 Do you support sample shipment?
A: Yes, we support shipping samples to the port.
Q9 how to guarantee my order after placing order?
A: We will track your order and provide production videos throughout the process. After delivery, the location of the item will also be tracked and provided to you until you receive the item. There will also be a dedicated customer service to receive your follow-up feedback.
Q10 Can you produce Q10 according to the sample?
A: Yes, we can produce according to your samples or technical drawings. We can build molds and fixtures.
Q11 What are your payment terms?
Answer: 30% as deposit, and pay 70% balance before delivery. We will show you photos and videos of the products and packaging before
