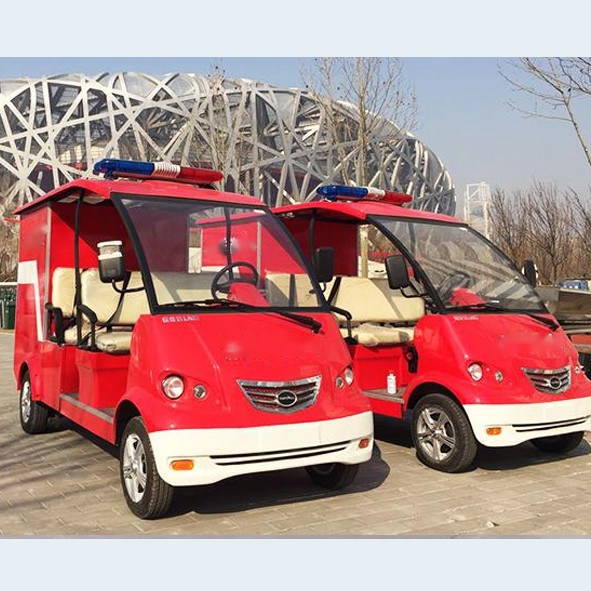

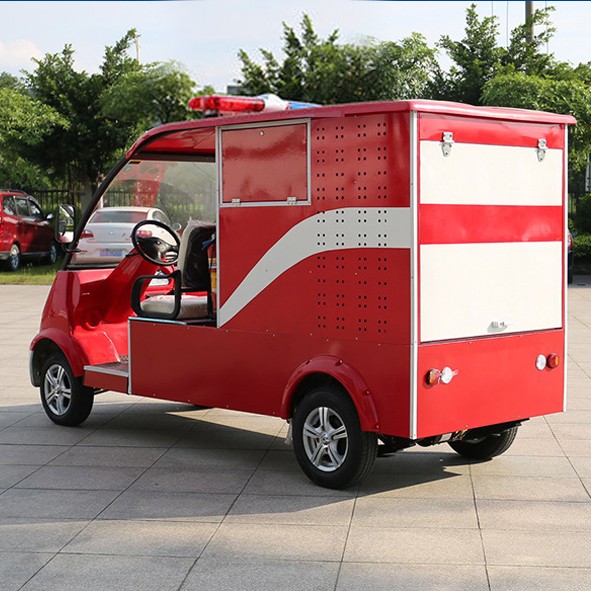

Community small fire rescue vehicle presentation
This mini fire truck is driven by DC motor and can run without refueling. It is equipped with a high-pressure water pump, which is very suitable for daily fire patrol and emergency fire emergency disposal in urban areas, communities, storage, logistics and other dense places. It has the advantages of small volume and strong flexibility. It is equipped with fire pumps, fire hoses, fire extinguishers and other fire-fighting equipment. In addition, the mini fire truck also has the functions of fire patrol Fire fighting publicity and other effects can play an important role in fire prevention and extinguishing.
Product parameters
Overall dimension:long x wide x high
|
3700×1450×2100(mm)
|
Box size: long x wide x high
|
980×1280×1160(mm)
|
Maximum speed (full load)
|
30(km/h)
|
Maximum climbing gradient(full load)
|
15%
|
Maximum drivi ng range
|
80-100(km)
|
Minimum ground clearance
|
150(mm)
|
Curb weight of complete vehicle
|
1000kg
|
Rated passenger capacity
|
5 人
|
Parking capacity (no load)
|
15%
|
Min imum turning radius
|
≤6(m)
|
braking distance
|
≤.5(m)
|
wheelbase
|
2570( mm )
|
Track width
|
1180/1200(mm)
|
Rated load
|
860(kg)
|
Battery
|
Original high-quality high-capacity deep cycle lead-acid battery,6v180ah*8 PCs.
|
battery charger
|
Full automatic high-efficiency pulse microcomputer intelligent charger, which stops automatically when fully charged
|
controlle r
|
The original electronic control system has the function of over temperature protection circuit, and the start is more stable.
|
electric machinery
|
Original DC motor, strong overload capacity, long service life, power: 4kw.
|
Power transmission system
|
Rear drive
|
steering system
|
Girculating ball steering machine, automatic gap compensation function
|
Front axle and suspension
|
Independent suspension, McPherson suspension (coill spring + barrel hydraulic damping)
|
Rear axle and suspension
|
Mini car, rear axle, leaf spring, non independent suspension
|
braking system
|
Front and rear dual circuit hydraulic drum brake, front and rear drum brake, parking brake device
|
tyre
|
Aluminum alloy wheel hub, front wheel 145 / 70r12, rear wheel 155 / r12c, vacuum tire
|
paint
|
The whole car adopts high-grade automobile paint of well-known brand
|
Frame + body
|
High quality carbon square tube welded antirust frame + FRP outer covering
|
Lights and signals
|
Headlights, small headlights, turn signal lights, brake lights, electric horn, reversing lights and power shortage alarm
|
Alarm lamp
|
LED flash long row alarm light, integrated siren speaker
|
Front windshield
|
Standard automotive laminated glass
|
chair
|
Advanced simulated leather fabric + high rebou nd Pu
|
meter
|
Ammeter, electricity meter, steering indication, reversing buzzer forward and backward indication, time accumulation meter
|
switch
|
Start switch, light and wiper combinati on switch, front and rear reversing switch
|
Steering wheel
|
Standard car steering wheel, hand horn
|
engine ty pe
|
Four stroke single cylinder air cooling
|
start-up
|
Electric start / self return hand rope start
|
lift
|
60m
|
Maximum fiow
|
46T/H
|
quality
|
55kg
|
maxim um power
|
8.1kw(11H P)
|
Diversi on mode
|
Exhaust self suction water
|
Rated pressure
|
Not less than 0.50mpa
|
Rated flow
|
30T/H
|
volume
|
570*560*520 mm
|
Fire hammer
|
1
|
Fire fighting shovel
|
1
|
Fire hose
|
1 set
|
Crowbar
|
1 piece
|
Fire respirator
|
2pes
|
Page r
|
1
|
Fire gloves
|
2 pairs
|
Fire rubber shoes
|
2 pairs
|
Fire axe
|
1
|
Fire tongs
|
1
|
Fire hydrant wrench
|
1
|
Dry powder fire extinguisher
|
2 bottles
|
Fashlight
|
1
|
Safety belt
|
Article 2
|
Fire helmet
|
2psc
|
Fire extinguisher support
|
2
|
Product features and applications
The miniature electric fire truck has the advantages of low operation cost, small appearance design, simple operation, energy conservation and environmental protection. It is an environmentally friendly electric passenger car specially designed for communities, warehouses, hotels, tourist attractions, parks, large amusement parks, schools, hospitals, large factories and many other places. This model is becoming more and more popular. We sell very well all over the world. We can customize models according to customer requirements.
Product details
Company size
Delivery of shipments and services
FAQ
Q1 How to place an order?
1) Contact customer service to confirm the freight and product model, configuration, quantity and other details (you can also arrange your own freight forwarder);
2) We provide you with a proforma invoice containing all product details in accordance with your final decision;
3) You need to arrange 30% payment to our bank account, then we will prepare the product to start production (the cycle is generally about 10 days, can be specially configured for your order quantity delivery);
4) After the product is completed, we will pay the remaining payment and arrange delivery by our forwarder (or we can provide relevant information and arrange forwarder transportation by ourselves).
5) Upon completion of this process, customer service will track the location of the product and notify you of its imminent arrival and arrival so that you can quickly prepare for customs clearance and other related issues.
Q2 What does your FOB reference price include?
A: FOB includes costs only. If you do not have your own freight forwarder, please provide us with the port country/region near you and we will quote cif including freight.
Q3 What is your warranty service?
A: We offer a one-year warranty for the motors, batteries and controllers.
Q4 Why can't I use Courier service and order by myself?
A: Packaged, the product is bulky and contains a large number of batteries. It can be transported by rail but the cost is too high (the appearance of the product may wear out).
Q5 What if I still insist on home delivery?
A: Please provide your address and then we can check the details and arrange.
Q6 What is your production/delivery time for ?
A: The production/delivery time will be controlled within 30 days (generally 10 days can be shipped, simple configuration is 2-3 days).
Q7 Do you test everything before shipping?
A: Yes, we have passed 100% testing before shipment (basic equipment testing also includes roads, hill climbing, rain, water crossing roads, etc.).
Q8 Do you support sample shipment?
A: Yes, we support shipping samples to the port.
Q9 how to guarantee my order after placing order?
A: We will track your order and provide production videos throughout the process. After delivery, the location of the item will also be tracked and provided to you until you receive the item. There will also be a dedicated customer service to receive your follow-up feedback.
Q10 Can you produce Q10 according to the sample?
A: Yes, we can produce according to your samples or technical drawings. We can build molds and fixtures.
Q11 What are your payment terms?
Answer: 30% as deposit, and pay 70% balance before delivery. We will show you photos and videos of the products and packaging before
