Electric open sightseeing bus presentation
This electric sightseeing car relies on electricity to run, does not need to use gasoline, so it will not produce exhaust gas and will not damage the air. In terms of green environmental protection, electric vehicles have been avant-garde. The wide promotion of electric vehicles has a certain effect on the environmental protection of the earth and the improvement of the living environment. Equipped with 72V inbol intelligent controller system and hampda 4000W alternator. The battery has large capacity, long service life, good temperature resistance, fast and efficient charging. Leather steering wheel, easy to operate, clear functional area. The digital LCD panel displays the front and rear lights, speed and remaining battery power. Vacuum tire aluminum wheel is anti-skid and durable to ensure smooth and comfortable driving of the vehicle. The seat belt and safety belt ensure the comfort and safety of passengers. Independent suspension system and powerful chassis system ensure huge load capacity.
Product parameters
Electrial System
|
Controller
|
72 V Inbol intelligent controller
|
Storage Battery
|
12V*6PCS,100AH
|
Battey charger
|
Vehicle-mounted intelligent charge
|
Charger Voltage
|
Single phase,220V
|
Motor
|
Hanpuda 4000 W alternator
|
Traveling Range
|
90-120km
|
Charging Time
|
8-10Hours
|
GW
|
1050 KGS
|
Technicial Data
|

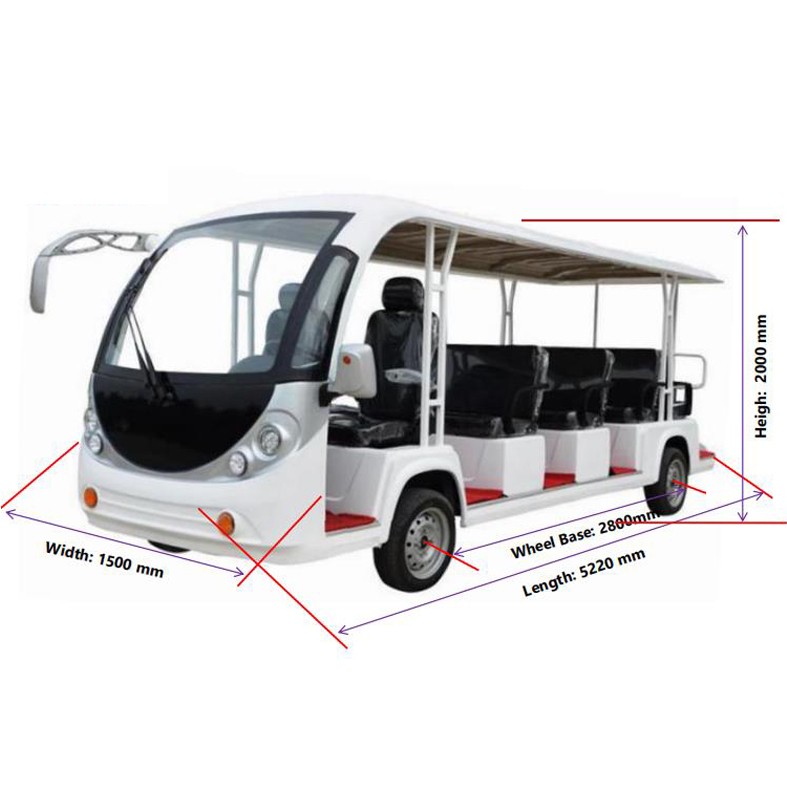

Overall Size
|
5220*1500*2000 mm (L*W*H)
|
Seating Capacity
|
14 Seats
|
Speed Range
|
20-30 km/h
|
Climbing Capacity
|
25%
|
Wheel Base
|
2800 MM
|
Body Material
|
Metal
|
Chassis Material
|
Metal
|
Braking Length
|
≤4 Meters
|
Min.Turning Tadius
|
6000 MM
|
Front Rear Tracks
|
1300 MM
|
Car Body System
|
Seat Material
|
Imitation leather (PU)
|
Instrument Panel
|
Combined instrument(front/back signal,light trumpet,dump energy.current speed display)
|
Lighting System
|
Combined type front light and back light,braking light,front/back turning light
|
Switch System
|
Light switch,main power switch,electric horn,wiper switch
|
Entertainment System
|
MP3 Player
|
Car Body Painting
|
Color can be customized.
|
Chassis System
|
Drive System
|
Rear-drive motor,Controller adjusted automatically
|
Steering System
|
Automatic adjustment rack and pinion direction
|
Braking System
|
Four wheel hydraulic brake +double circuit hydraulic brake +parking brake device +brake assist
|
Tire Details
|
205-50-10,Aluminium wheel hub,vacuum tire
|
Front Axle and Suspension
|
Integral front bridge suspension
|
Back Axle and Suspension
|
Integral front bridge suspension
|
Product features and applications
The most obvious advantage of this sightseeing car is that it has low noise and will not affect people's daily life when used. Therefore, it is very suitable for use in areas with a large flow of people, such as scenic spots, parks, amusement parks, etc., which can achieve the effect of leisure vacation; Improve work efficiency, in the era of time is money, it is to save working time and get twice the result with half the effort. This sightseeing car is suitable for major scenic spots, theme parks, city squares, campuses, factories, docks, real estate reception, vacation hot springs, airports, railway stations and other places, with energy conservation and environmental protection and zero emission.
Product details
Company size
Delivery of shipments and services
FAQ
Q1 How to place an order?
1) Contact customer service to confirm the freight and product model, configuration, quantity and other details (you can also arrange your own freight forwarder);
2) We provide you with a proforma invoice containing all product details in accordance with your final decision;
3) You need to arrange 30% payment to our bank account, then we will prepare the product to start production (the cycle is generally about 10 days, can be specially configured for your order quantity delivery);
4) After the product is completed, we will pay the remaining payment and arrange delivery by our forwarder (or we can provide relevant information and arrange forwarder transportation by ourselves).
5) Upon completion of this process, customer service will track the location of the product and notify you of its imminent arrival and arrival so that you can quickly prepare for customs clearance and other related issues.
Q2 What does your FOB reference price include?
A: FOB includes costs only. If you do not have your own freight forwarder, please provide us with the port country/region near you and we will quote cif including freight.
Q3 What is your warranty service?
A: We offer a one-year warranty for the motors, batteries and controllers.
Q4 Why can't I use Courier service and order by myself?
A: Packaged, the product is bulky and contains a large number of batteries. It can be transported by rail but the cost is too high (the appearance of the product may wear out).
Q5 What if I still insist on home delivery?
A: Please provide your address and then we can check the details and arrange.
Q6 What is your production/delivery time for ?
A: The production/delivery time will be controlled within 30 days (generally 10 days can be shipped, simple configuration is 2-3 days).
Q7 Do you test everything before shipping?
A: Yes, we have passed 100% testing before shipment (basic equipment testing also includes roads, hill climbing, rain, water crossing roads, etc.).
Q8 Do you support sample shipment?
A: Yes, we support shipping samples to the port.
Q9 how to guarantee my order after placing order?
A: We will track your order and provide production videos throughout the process. After delivery, the location of the item will also be tracked and provided to you until you receive the item. There will also be a dedicated customer service to receive your follow-up feedback.
Q10 Can you produce Q10 according to the sample?
A: Yes, we can produce according to your samples or technical drawings. We can build molds and fixtures.
Q11 What are your payment terms?
Answer: 30% as deposit, and pay 70% balance before delivery. We will show you photos and videos of the products and packaging before
