product presentation

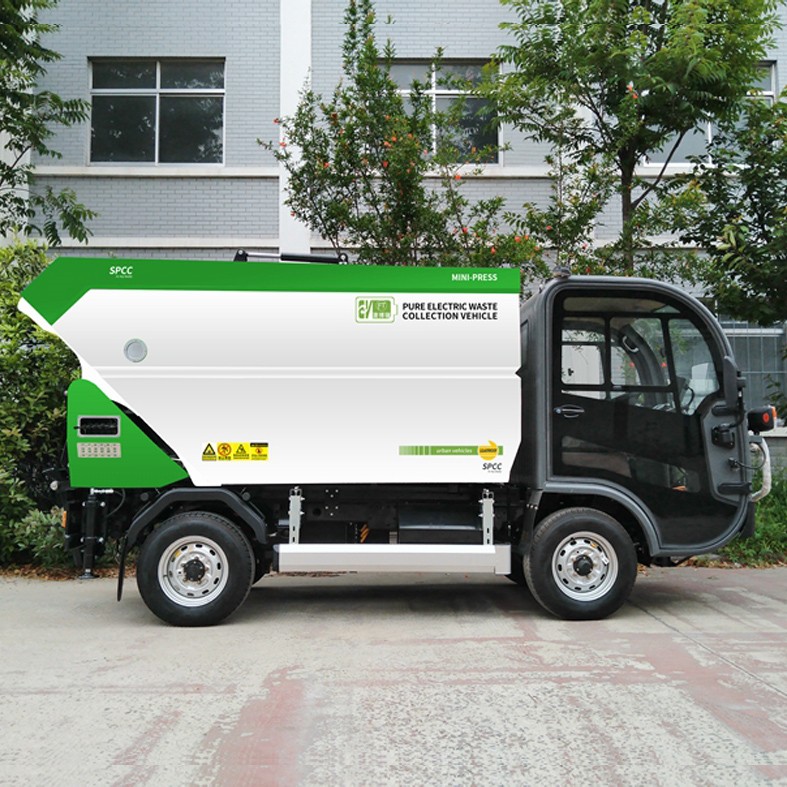

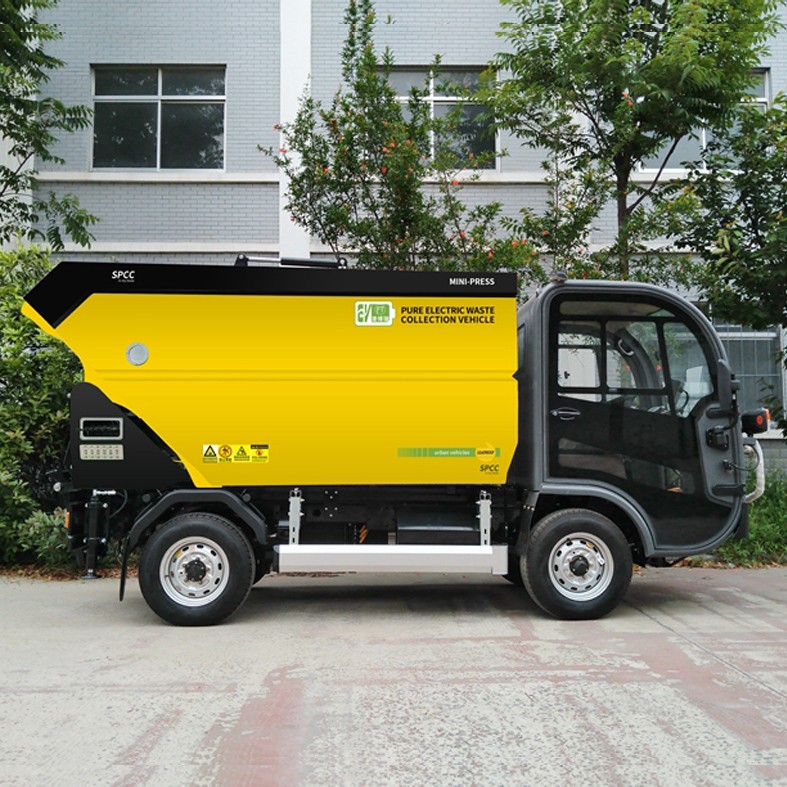

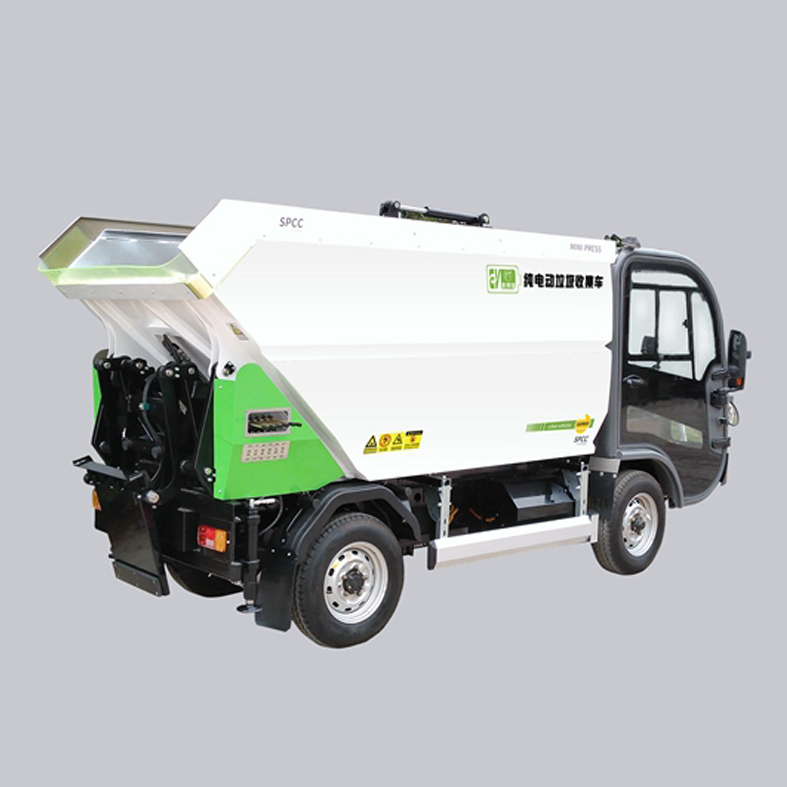

This electric sanitation vehicle garbage disposal vehicle is in the form of rear loading garbage, equipped with scraper, which can be simply compressed and increase the volume of garbage can. The standard 240 liter garbage can can hold 20-25 buckets. The carriage is self unloading, which can connect large, medium and small waste compression vehicles and large, medium and small transfer stations, saving the time to and from the transfer station and improving work efficiency. The garbage in the whole process is closed, which can ensure that the garbage does not fall to the ground. The whole vehicle is pure electric, economical and environmentally friendly, with a range of up to 100 kilometers. Compared with the old model, the new model has more comfortable and safer cab and higher configuration; The appearance is more beautiful. The vehicle is comfortable to drive, simple to operate and has no excessive requirements for the driver. The dustbin adopts a U-shaped box designed and made by 201 stainless steel sheet metal process, which is beautiful, rust proof and more convenient for garbage dumping. Stainless steel has good rust resistance. There is no garbage exposed, scattered or sewage leakage during transportation.
Product parameters
ltems
|
Spec
|
Vehicle size
|
4250mmx1450mm x2120mm
|
Body volume(m³)
|
3.6
|
GVW(kg)
|
3500
|
Capacity(kg)
|
1300
|
Wheelbase(mm)
|
2210 mm
|
Tire size
|
185R14LT
|
Traveling motor power
(KW)
|
7.5
|
Pump motor power (kW)
|
2.2
|
Climbing ability(%)
|
30
|
Battery capacity(Kwh
|
14.4(lithium battery)
|
28.8(lithium battery)Optional
|
Mileage(km)
|
60~80(14.4Kwh)
|
120~150(28.8Kwh Lithium)optional
|
Promote capacity(kg)
|
300 kg
|
Compression capacity
|
1:1.5
|
Sigle promote capacity
|
EN840120L/240L/360L
|
Double promote capacity
(optional)
|
EN840120L/240L,360L/660L(sigle)
|
Unloading time(s)
|
35±1
|
Promote time(s)
|
10±1
|
Camera system
|
Yes
|
Air conditioner
|
Yes
|
Product features and applications
This electric sanitation vehicle garbage disposal vehicle is equipped with a range of up to 100 kilometers, which meets the needs of large area and long cleaning and transportation distance of the scenic spot. Moreover, the whole vehicle is pure electric and has zero emission, which will not pollute the environment of the scenic spot. At the same time, it is also equipped with EPS steering power assist device, EBS braking vacuum power assist system and widened front and rear hydraulic braking. It has flexible steering, reliable braking and safer driving in the scenic spot. At present, it has been widely used in urban sanitation, urban and rural sanitation, municipal gardens, property cleaning, factories, schools, hospitals, scenic spots, communities, streets and other places.
Product details
Company size
Delivery of shipments and services
FAQ
Q1 How to place an order?
1) Contact customer service to confirm the freight and product model, configuration, quantity and other details (you can also arrange your own freight forwarder);
2) We provide you with a proforma invoice containing all product details in accordance with your final decision;
3) You need to arrange 30% payment to our bank account, then we will prepare the product to start production (the cycle is generally about 10 days, can be specially configured for your order quantity delivery);
4) After the product is completed, we will pay the remaining payment and arrange delivery by our forwarder (or we can provide relevant information and arrange forwarder transportation by ourselves).
5) Upon completion of this process, customer service will track the location of the product and notify you of its imminent arrival and arrival so that you can quickly prepare for customs clearance and other related issues.
Q2 What does your FOB reference price include?
A: FOB includes costs only. If you do not have your own freight forwarder, please provide us with the port country/region near you and we will quote cif including freight.
Q3 What is your warranty service?
A: We offer a one-year warranty for the motors, batteries and controllers.
Q4 Why can't I use Courier service and order by myself?
A: Packaged, the product is bulky and contains a large number of batteries. It can be transported by rail but the cost is too high (the appearance of the product may wear out).
Q5 What if I still insist on home delivery?
A: Please provide your address and then we can check the details and arrange.
Q6 What is your production/delivery time for ?
A: The production/delivery time will be controlled within 30 days (generally 10 days can be shipped, simple configuration is 2-3 days).
Q7 Do you test everything before shipping?
A: Yes, we have passed 100% testing before shipment (basic equipment testing also includes roads, hill climbing, rain, water crossing roads, etc.).
Q8 Do you support sample shipment?
A: Yes, we support shipping samples to the port.
Q9 how to guarantee my order after placing order?
A: We will track your order and provide production videos throughout the process. After delivery, the location of the item will also be tracked and provided to you until you receive the item. There will also be a dedicated customer service to receive your follow-up feedback.
Q10 Can you produce Q10 according to the sample?
A: Yes, we can produce according to your samples or technical drawings. We can build molds and fixtures.
Q11 What are your payment terms?
Answer: 30% as deposit, and pay 70% balance before delivery. We will show you photos and videos of the products and packaging before
