product presentation
For this mobile vaccination vehicle, the whole vehicle skeleton and the skin of the vehicle body (including the roof, both sides of the vehicle and the floor) shall be filled and sealed with foam or pasted with heat insulation and sound insulation cotton. Especially the engine position can meet the requirements of heat insulation and sound insulation. At the same time, the car body and frame form a whole, which can make noise insulation and noise reduction, avoid vibration, strengthen the rigidity of the car body, ensure warm in winter and cool in summer, and create a comfortable working environment.
Product parameters
Total mass (kg)
|
3510
|
Rated load mass (kg)
|
1100
|
Curb weight (kg)
|
2280
|
Number of passengers allowed in the cab
|
23
|
Approach angle / departure angle(°)
|
20/25
|
Number of leaf springs
|
-/1,-/2
|
Number of axes
|
2
|
Number of tires
|
4
|
Front track width (mm)
|
1736
|
Axle load (kg)
|
1635/1875
|
Tank volume(M3)
|
1方
|
Overall dimension (mm)
|
5341X2032×2580
|
Cargo compartment size (mm)
|
2290×1450×1550
|
Load mass utilization coefficient
|
0.53
|
Front suspension / rear suspension (mm)
|
1014/1027
|
Steering form
|
Steering wheel
|
Product features and applications

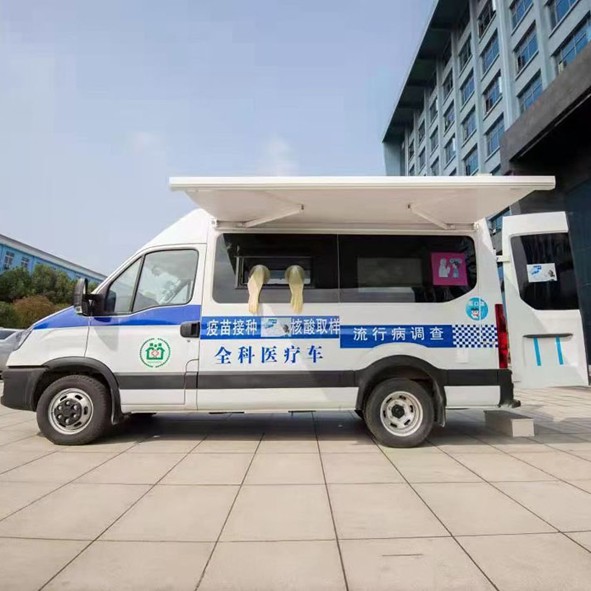

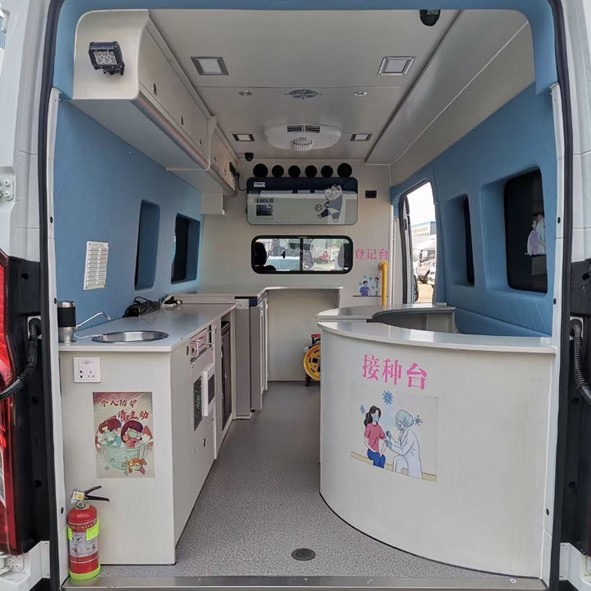

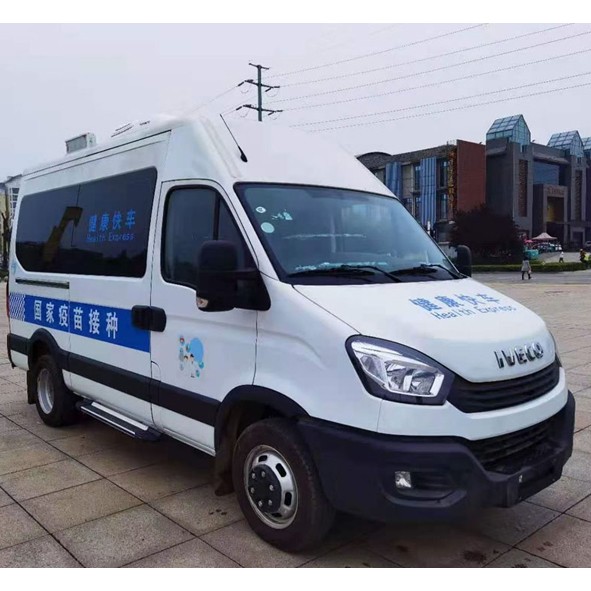

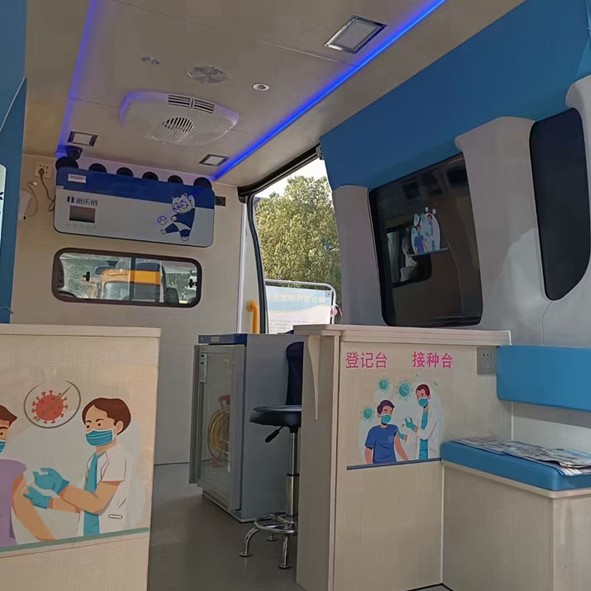

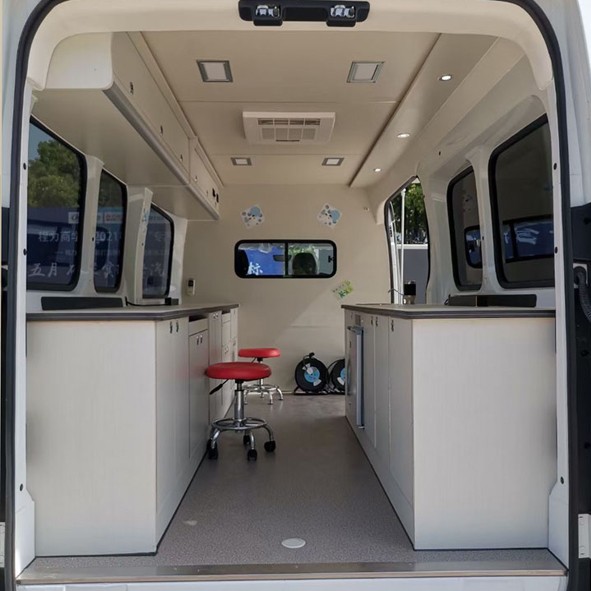

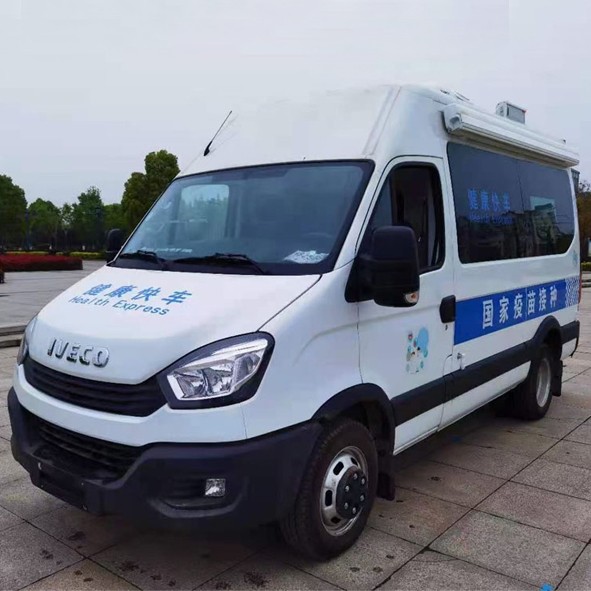

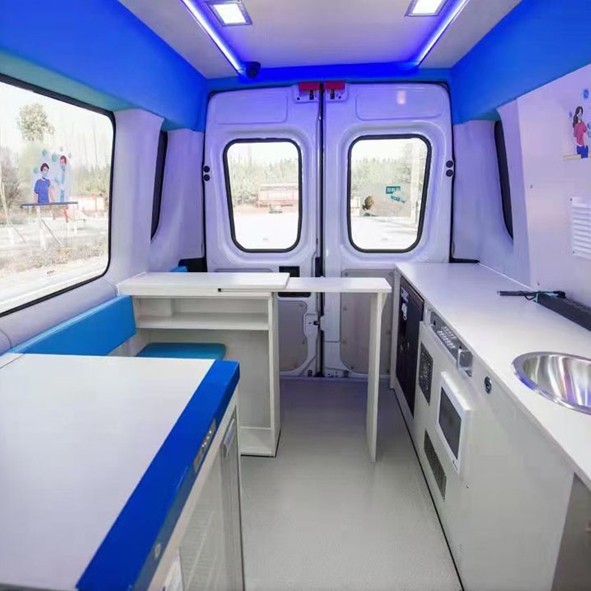

This mobile vaccination vehicle can be quickly deployed outdoors for mobile vaccination, which can realize the nearby vaccination of key places and key people, and greatly reduce the risk of virus transmission. The vehicle is equipped with air conditioning and positive pressure fresh air system, and the deployment can be completed within 60 seconds. The daily vaccination amount can be increased to 4000 person times to improve the efficiency of epidemic prevention and control. The interior of the vaccination car is spacious, so that medical staff have enough space to vaccinate patients.
Product details
Company size
Delivery of shipments and services
FAQ
Q1 How to place an order?
1) Contact customer service to confirm the freight and product model, configuration, quantity and other details (you can also arrange your own freight forwarder);
2) We provide you with a proforma invoice containing all product details in accordance with your final decision;
3) You need to arrange 30% payment to our bank account, then we will prepare the product to start production (the cycle is generally about 10 days, can be specially configured for your order quantity delivery);
4) After the product is completed, we will pay the remaining payment and arrange delivery by our forwarder (or we can provide relevant information and arrange forwarder transportation by ourselves).
5) Upon completion of this process, customer service will track the location of the product and notify you of its imminent arrival and arrival so that you can quickly prepare for customs clearance and other related issues.
Q2 What does your FOB reference price include?
A: FOB includes costs only. If you do not have your own freight forwarder, please provide us with the port country/region near you and we will quote cif including freight.
Q3 What is your warranty service?
A: We offer a one-year warranty for the motors, batteries and controllers.
Q4 Why can't I use Courier service and order by myself?
A: Packaged, the product is bulky and contains a large number of batteries. It can be transported by rail but the cost is too high (the appearance of the product may wear out).
Q5 What if I still insist on home delivery?
A: Please provide your address and then we can check the details and arrange.
Q6 What is your production/delivery time for ?
A: The production/delivery time will be controlled within 30 days (generally 10 days can be shipped, simple configuration is 2-3 days).
Q7 Do you test everything before shipping?
A: Yes, we have passed 100% testing before shipment (basic equipment testing also includes roads, hill climbing, rain, water crossing roads, etc.).
Q8 Do you support sample shipment?
A: Yes, we support shipping samples to the port.
Q9 how to guarantee my order after placing order?
A: We will track your order and provide production videos throughout the process. After delivery, the location of the item will also be tracked and provided to you until you receive the item. There will also be a dedicated customer service to receive your follow-up feedback.
Q10 Can you produce Q10 according to the sample?
A: Yes, we can produce according to your samples or technical drawings. We can build molds and fixtures.
Q11 What are your payment terms?
Answer: 30% as deposit, and pay 70% balance before delivery. We will show you photos and videos of the products and packaging before
