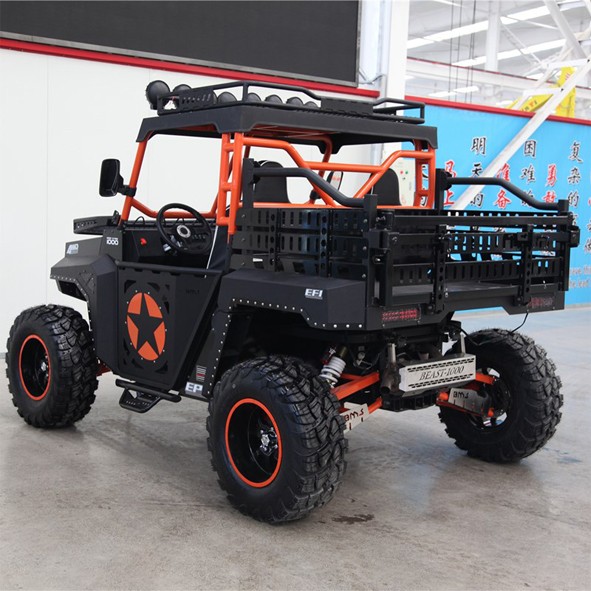

Multifunctional off-road ATV presentation
This multifunctional off-road hunting vehicle has an advanced suspension system and adopts a suspension system with excellent shock absorption performance, which integrates the advantages of comfort, chassis control and bumping relief. The advanced rear automatic adjustment shock absorber can be automatically adjusted according to the changes of vehicle and passenger load, so as to ensure the ideal chassis performance every time you drive. Powerful two cylinder engine, double seat space design, each seat is equipped with comfortable shoulder pads and three-point seat belts. At the same time, it realizes the perfect balance between excellent functionality, excellent comfort and reliable off-road performance. It is an ideal choice for outdoor adventure sports.
Product parameters
Engine & Drivetrain
|
Cooling
|
Liquid
|
Cylinders Displacement
|
996.6cc
|
Drive System
|
Shaft, Selectable 4x4, Front Differential Lock
|
Compression Ratio
|
10.5 : 1
|
Engine Type
|
V-twin , 4-Stroke , SOHC
|
Fuel System/Battery
|
DELPHI Electronic Fuel Injection
|
Max Power
|
63kw(81hp)/6500rpm
|
Max Torque
|
95N.m/5500rpm
|
Transmission
|
CVT L-H-N-R-P
|
Starting system
|
Electric start
|
Fuel Type
|
gasoline
|
Dimensions
|
Overall Length×width×Height
|
2898 mm ×1680 mm ×1900mm
|
Cargo Box Dimensions
|
820 mm ×1410 mm ×250mm Dump 35°
|
Estimated Dry Weight
|
830 kg
|
Front/Rea Box Capacity
|
50kg/200kg
|
Fuel Capacity
|
30L
|
Wheelbase
|
1915 mm
|
Ground clearance
|
340 mm
|
Front/Rear Brakes
|
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
|
Additional Spesifications
|
Cargo System
|
Electric dump bed
|
Doors
|
Metal Half Door
|
Lighting
|
4 D-series lights
|
Mirrors
|
Rear mirror
|
Roof
|
Metal Roof
|
Color
|
Black
|
Camouflage
|
Product features and applications
This multifunctional off-road hunting vehicle is equipped with new cool LED lights, leading the fashion trend of ATV. The front and rear disc brakes are sensitive, safe and reliable. 25 inch off-road tire + aluminum alloy wheel hub. Independent suspension system, three-level cushioning, special shock absorption for off-road, more stable driving. Sports, rock climbing, competitions. New power mode to meet different driving needs and scenarios.
Product details
Company size
Delivery of shipments and services
FAQ
Q1 How to place an order?
1) Contact customer service to confirm the freight and product model, configuration, quantity and other details (you can also arrange your own freight forwarder);
2) We provide you with a proforma invoice containing all product details in accordance with your final decision;
3) You need to arrange 30% payment to our bank account, then we will prepare the product to start production (the cycle is generally about 10 days, can be specially configured for your order quantity delivery);
4) After the product is completed, we will pay the remaining payment and arrange delivery by our forwarder (or we can provide relevant information and arrange forwarder transportation by ourselves).
5) Upon completion of this process, customer service will track the location of the product and notify you of its imminent arrival and arrival so that you can quickly prepare for customs clearance and other related issues.
Q2 What does your FOB reference price include?
A: FOB includes costs only. If you do not have your own freight forwarder, please provide us with the port country/region near you and we will quote cif including freight.
Q3 What is your warranty service?
A: We offer a one-year warranty for the motors, batteries and controllers.
Q4 Why can't I use Courier service and order by myself?
A: Packaged, the product is bulky and contains a large number of batteries. It can be transported by rail but the cost is too high (the appearance of the product may wear out).
Q5 What if I still insist on home delivery?
A: Please provide your address and then we can check the details and arrange.
Q6 What is your production/delivery time for ?
A: The production/delivery time will be controlled within 30 days (generally 10 days can be shipped, simple configuration is 2-3 days).
Q7 Do you test everything before shipping?
A: Yes, we have passed 100% testing before shipment (basic equipment testing also includes roads, hill climbing, rain, water crossing roads, etc.).
Q8 Do you support sample shipment?
A: Yes, we support shipping samples to the port.
Q9 how to guarantee my order after placing order?
A: We will track your order and provide production videos throughout the process. After delivery, the location of the item will also be tracked and provided to you until you receive the item. There will also be a dedicated customer service to receive your follow-up feedback.
Q10 Can you produce Q10 according to the sample?
A: Yes, we can produce according to your samples or technical drawings. We can build molds and fixtures.
Q11 What are your payment terms?
Answer: 30% as deposit, and pay 70% balance before delivery. We will show you photos and videos of the products and packaging before
