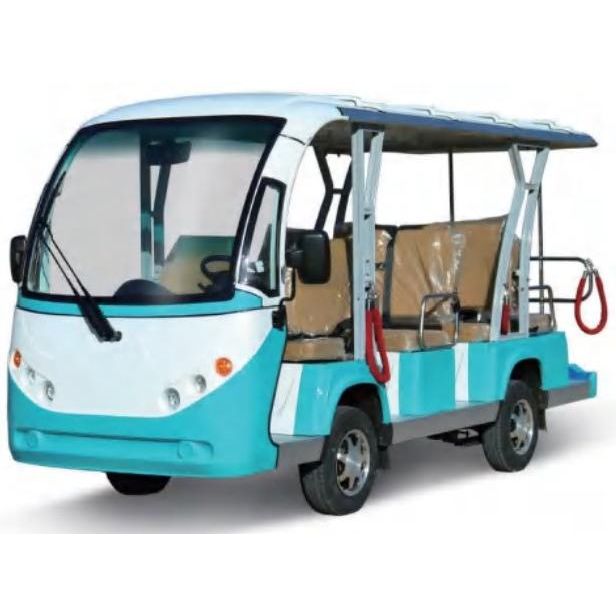

Sightseeing Bus
The following is the introduction of high quality Sightseeing Bus, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future!
Send Inquiry
Product Description
The following is the introduction of high quality Sightseeing Bus, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future!
-
Seat
-
Headlights
-
Wheel
-
Front axle
-
Brake
-
Monitor
-
Steering wheel
-
Taillight
-
Rearview mirror
KHEV-G11
KHEV-G11 (closed type)
Technical parameters
| Dverall Dimension | 4300*1530*2100mm |
| Passengers Capacity | 11 |
| Max.Speed | 30km/h |
| Max.Travelling Range | 80-100km |
| Slope Climbing Capacity | 15% |
| Turning Radius | 6.5m |
| Ground Clearance | 145mm |
| Brake Distance | 5m |
| Wheelbase | 1970mm |
| Front/Rear Tread | 1280/1290mm |
| Weight | 890kg |
| Tire | 155R12,aluminum alloy rim |
Electric system
| Motor | 5kW AC |
| Controller | 48V,400A |
| Battery Type | 48V,150Ah,lithium battery |
| Charger | Intelligent high-frequency car charger |
| Charging Time | 8 hours |
Motivation control
| Braking System | Front disc and rear drum brake,dual-circuit hydraulic brake, vacuum brake booster pump |
| Front Axle and Suspension | Front axle MacPherson independent suspension coil spring |
| Rear Axle and Suspension | Integral rear axle leaf spring |
| Steering | Continuously variable transmission system |
Exterior
| Display | Digital display LCD instrument (including voltage,vehicle speed, mileage,light,front and rear reversing signals,etc.) |
| Light | Combined headlights,combined rear taillights |
| Seat | High-density sponge+durable leather fabric |
| Body Material | Steel frame +ABS engineering plastic molding material |
HKEV-G14
| Dverall Dimension | 5150*1530*2100mm |
| Passengers Capacity | 14 |
| Max.Speed | 30km/h |
| Max.Travelling Range | 80-100km |
| Slope Climbing Capacity | 15% |
| Turning Radius | 6.5m |
| Ground Clearance | 145mm |
| Brake Distance | 5m |
| Wheelbase | 2780mm |
| Front/Rear Tread | 1280/1290mm |
| Weight | 1020kg |
| Tire | 155R12,aluminum alloy rim |
Electric system
| Motor | 5kW AC |
| Controller | 48V,400A |
| Battery Type | 48V,150Ah,lithium battery |
| Charger | Intelligent high-frequency car charger |
| Charging Time | 8 hours |
Motivation control
| Braking System | Front disc and rear drum brake,dual-circuit hydraulic brake, vacuum brake booster pump |
| Front Axle and Suspension | Front axle MacPherson independent suspension coil spring |
| Rear Axle and Suspension | Integral rear axle leaf spring |
| Steering | Continuously variable transmission system |
Exterior
| Display | Digital display LCD instrument (including voltage,vehicle speed, mileage,light,front and rear reversing signals,etc.) |
| Light | Combined headlights,combined rear taillights |
| Seat | High-density sponge+durable leather fabric |
| Body Material | Steel frame +ABS engineering plastic molding material |
HKEV-G17
| Dverall Dimension | 5900*1500*2000mm |
| Passengers Capacity | 17 |
| Max.Speed | 30km/h |
| Max.Travelling Range | 80-100km |
| Slope Climbing Capacity | 15% |
| Turning Radius | 6.5m |
| Ground Clearance | 145mm |
| Brake Distance | 5m |
| Wheelbase | 3600mm |
| Front/Rear Tread | 1300/1200mm |
| Weight | 1000kg |
| Tire | 155R12,aluminum alloy rim |
Electric system
| Motor | 5kW AC |
| Controller | 48V,400A |
| Battery Type | 48V,150Ah,lithium battery |
| Charger | Intelligent high-frequency car charger |
| Charging Time | 8 hours |
Motivation control
| Braking System | Front disc and rear drum brake,dual-circuit hydraulic brake, vacuum brake booster pump |
| Front Axle and Suspension | Front axle MacPherson independent suspension coil spring |
| Rear Axle and Suspension | Integral rear axle leaf spring |
| Steering | Continuously variable transmission system |
Exterior
| Display | Digital display LCD instrument (including voltage,vehicle speed, mileage,light,front and rear reversing signals,etc.) |
| Light | Combined headlights,combined rear taillights |
| Seat | High-density sponge+durable leather fabric |
| Body Material | Steel frame +ABS engineering plastic molding material |
HKEV-G23
| Dverall Dimension | 5750*1950*2160mm |
| Passengers Capacity | 23 |
| Max.Speed | 28km/h |
| Max.Travelling Range | 80-150km |
| Slope Climbing Capacity | 15% |
| Turning Radius | 8m |
| Ground Clearance | 330mm |
| Brake Distance | 5m |
| Wheelbase | 3300mm |
| Front/Rear Tread | 1650/1680mm |
| Weight | 1650kg |
| Tire | 195R14,steel rim |
Electric system
| Motor | 15kW AC |
| Controller | 72V,400A |
| Battery Type | 72V,200Ah,6v*12pcs lithium battery |
| Charger | Intelligent high-frequency car charger |
| Charging Time | 8 hours |
Motivation control
| Braking System | Front disc and rear drum brake,dual-circuit hydraulic brake, vacuum brake booster pump |
| Front Axle and Suspension | Front axle MacPherson independent suspension coil spring |
| Rear Axle and Suspension | Integral rear axle leaf spring |
| Steering | Continuously variable transmission system |
Exterior
| Display | Digital display LCD instrument (including voltage,vehicle speed, mileage,light,front and rear reversing signals,etc.) |
| Light | Combined headlights,combined rear taillights |
| Seat | High-density sponge+durable leather fabric |
| Body Material | Steel frame +ABS engineering plastic molding material |
