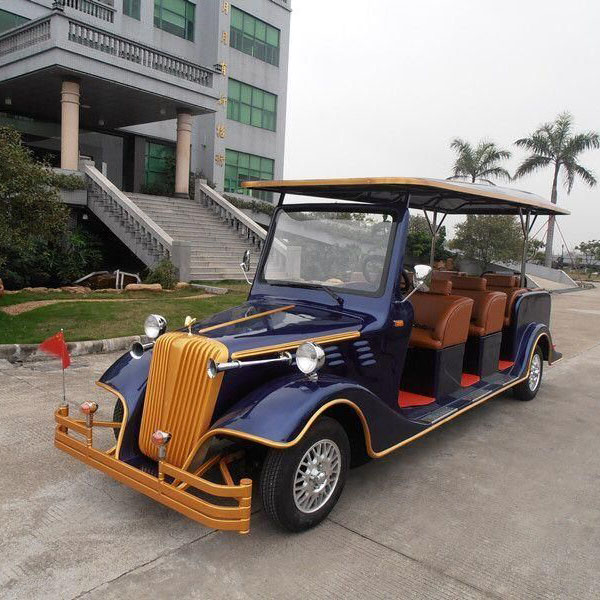

3+1 four-row LSLS classic sightseeing vehicle

You can rest assured to buy customized 3+1 four-row LSLS classic sightseeing vehicle from us. It uses the fully intelligent electronic control of Inbol (imported from the United States); the battery is 72V-6V200AH/piece, 12 pieces (large capacity maintenance-free battery); the motor is Depda 5KW three-phase asynchronous AC motor. Automatic power-off recovery function; the charger is a car-mounted intelligent charger (automatic power-off function when fully charged); the charging time is 6-8 hours (discharge rate is 80%).

Send Inquiry

Product Description

Make and model	3+1 four-row LSLS classic sightseeing vehicle
Serial number	Composition system	Key accessories	Details of accessory parameters
1	Electrical system	Electronic control	Inbol (imported from the United States) fully intelligent electronic control
2		Battery	72V-6V200AH/only, 12 (large-capacity maintenance-free batteries)
3		Electric machinery	Depuda 5KW three-phase asynchronous AC motor. Automatic power recovery function
4		Charger	Vehicle-mounted intelligent charger (fully charged automatic power-off function)
5		Charging time	6-8 hours (discharge rate is 80%)
6	Technical parameter	Charging input voltage	220V
7		Lengthwidthheight	5050×1500×2100mm
8		The quality of vehicle equipment	950kg
9		Whole vehicle loading	1200kg
10		Front and rear wheelbase	1220/1200mm
11		Wheelbase	3830mm
12		Minimum ground clearance	150mm
13		Brake distance	≤5m
14		Rated crew	8 people
15		Maximum driving speed	30km/h
16		Maximum climbing slope	0.1
17		Minimum turning radius	7.5m
18		Continuing mileage	100-120 km
19		The seat	The first row of double row seats (leather fabric + high rebound PU, black seats)
20			Two-person row seats in the back row (leather fabric + high rebound PU, black seats)
21		Car body	Sprayed steel frame + fiberglass shell
22	Body system	Appearance	LCD instrument display (including voltage, current, speed, mileage, lighting, front and rear commutation and other signals)
23		Rear-view mirror	Manual external rearview mirror can be adjusted for large field of vision
24		Lighting and signal	Headlights, turn signals, rear taillights, brake lights, electric horns and reversing buzzers
25		Sound	Advanced car audio and on-board MP3 machine, professional speaker
26		Switch	Start switch, light and wiper combination switch, in and out gear switch
27		Door	Not have
28		Frame	Steel structure welding frame (sandblasting and rust removal, spraying anti-rust and corrosion resistance)
29	Chassis system	Steering wheel	Polyurethane foam steering wheel
30		Power transmission system	Infinitely variable speed system
31		Steering system	Gear rack directional machine
32		Front bridge and suspension	McPherson independent suspension + barrel hydraulic shock absorption
33		Reand bridge and suspension	Integral rear axle + high-strength steel plate spring + cylindrical hydraulic shock absorption
34		Brake system	Front disc, rear drum hydraulic brake, dual-circuit hydraulic brake, parking brake device, brake assistance
35	Body color		Color supports customization
