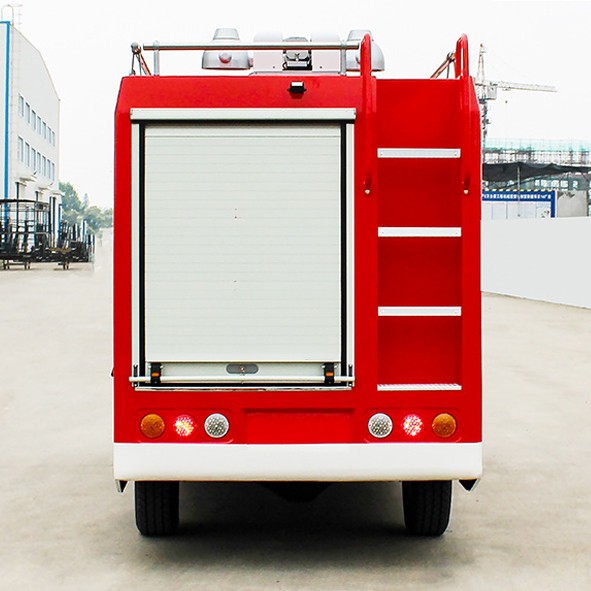

Electric enclosed fire truck

This is a medium-sized Electric enclosed fire truck. Without water tank, the fire engine is small and can quickly reach some narrow streets to control the fire before the large fire engine arrives. Electric drive, fuel free, energy saving and environmental protection. It is an environmentally friendly electric passenger car specially designed for communities, warehouses, hotels, tourist attractions, parks, large amusement parks, schools, hospitals, large factories and many other places.

Send Inquiry

Product Description

Electric enclosed fire truck presentation

This electric fire engine is energy-saving and environment-friendly, with low driving cost and small model, and can quickly reach some narrow streets. Control the fire before large fire engines arrive. This has obvious advantages over traditional fuel fire engines. When driving, the noise is low, zero emission meets the environmental protection requirements, and the model is small, so it is more suitable for daily fire patrol and can also be used as a sprinkler. The solid tire is enlarged to increase the trafficability of the product. The mature and high-quality electric control system ensures the reliability and easy operation of the product. Large capacity maintenance free battery is used as the power source, which is energy-saving, environmental protection and long continuous working time. Equipped with fire axe, fire hammer, fire tongs, dry powder fire extinguisher and other fire-fighting tools

Product parameters

Performance
Loading weight 0-5  tons
MaxSpeed 28  km/h
Range 120  km
climbing Ablity 15%
Braking Distance ≤6m
Min.Turning Radius 5  m
Min. Ground Clearance 150mm
Recharge time 8~10h
Dimension
Overall L×W×H 4800mm×1500mm×2000mm
Pla tform LXWXH 3200×1500×300mm
F/R Tread 1270/1270  mm
Wheelbase 2560mm
Curb Weight 1100kg
Max. loading 1500kg
Configuration
Motor 5.5KW  DC
Controller CURTIS DC control
Battery 72V/6V(230Ah)×12pcs
Charger 220V  portable
Body & Roof Steel chassis + FRP body
Steering Rack and pinion steering gear + electronic power
Brake mode Front disc rear drum hydraulic brake, dual circuit hydraulic brake, parking brake device
Tire Steel wheel front 155R13C/rear 165r13C vacuum radial tire

Product features and applications

This electric fire truck is a portable fire electric vehicle. In addition to the main functions of fire fighting, it also has the functions of fire patrol and fire publicity. Its compact body shape and diversified functions play an important role in the prevention and fire fighting of small streets, adding scientific and technological content and technical indicators. It is more convenient and fast, and maintains the effectiveness and sustainability of fire fighting work. The fire engine has small and flexible appearance and strong mobility. It is an environmentally friendly electric passenger car specially designed for communities, warehouses, hotels, tourist attractions, parks, large amusement parks, schools, hospitals, large factories and many other places.

Product details





Company size



Delivery of shipments and services



FAQ

Q1 How to place an order?
1) Contact customer service to confirm the freight and product model, configuration, quantity and other details (you can also arrange your own freight forwarder);
2) We provide you with a proforma invoice containing all product details in accordance with your final decision;
3) You need to arrange 30% payment to our bank account, then we will prepare the product to start production (the cycle is generally about 10 days, can be specially configured for your order quantity delivery);
4) After the product is completed, we will pay the remaining payment and arrange delivery by our forwarder (or we can provide relevant information and arrange forwarder transportation by ourselves).
5) Upon completion of this process, customer service will track the location of the product and notify you of its imminent arrival and arrival so that you can quickly prepare for customs clearance and other related issues.

Q2 What does your FOB reference price include?
A: FOB includes costs only. If you do not have your own freight forwarder, please provide us with the port country/region near you and we will quote cif including freight.

Q3 What is your warranty service?
A: We offer a one-year warranty for the motors, batteries and controllers.

Q4 Why can't I use Courier service and order by myself?
A: Packaged, the product is bulky and contains a large number of batteries. It can be transported by rail but the cost is too high (the appearance of the product may wear out).

Q5 What if I still insist on home delivery?
A: Please provide your address and then we can check the details and arrange.

Q6 What is your production/delivery time for ?
A: The production/delivery time will be controlled within 30 days (generally 10 days can be shipped, simple configuration is 2-3 days).

Q7 Do you test everything before shipping?
A: Yes, we have passed 100% testing before shipment (basic equipment testing also includes roads, hill climbing, rain, water crossing roads, etc.).

Q8 Do you support sample shipment?
A: Yes, we support shipping samples to the port.

Q9 how to guarantee my order after placing order?
A: We will track your order and provide production videos throughout the process. After delivery, the location of the item will also be tracked and provided to you until you receive the item. There will also be a dedicated customer service to receive your follow-up feedback.

Q10 Can you produce Q10 according to the sample?
A: Yes, we can produce according to your samples or technical drawings. We can build molds and fixtures.

Q11 What are your payment terms?
Answer: 30% as deposit, and pay 70% balance before delivery. We will show you photos and videos of the products and packaging before
