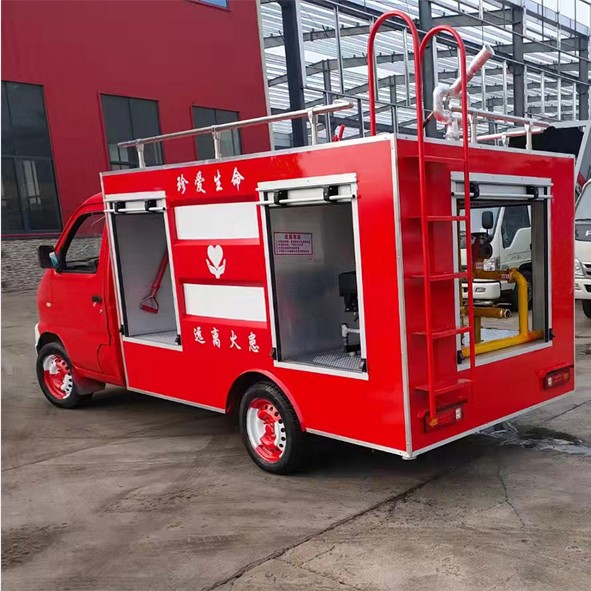

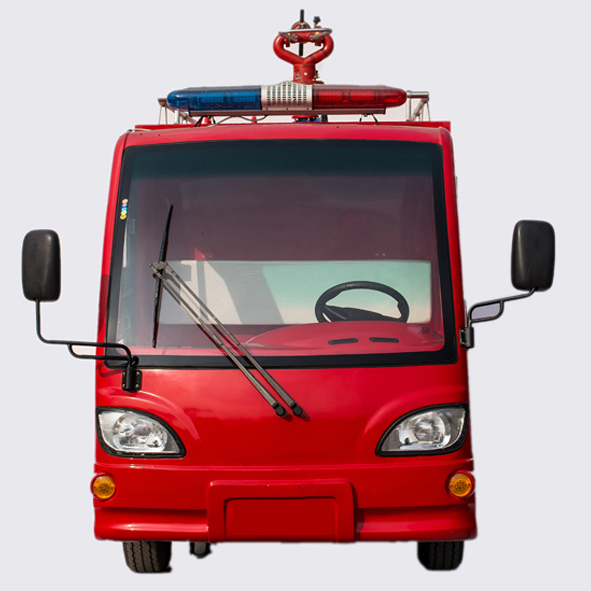

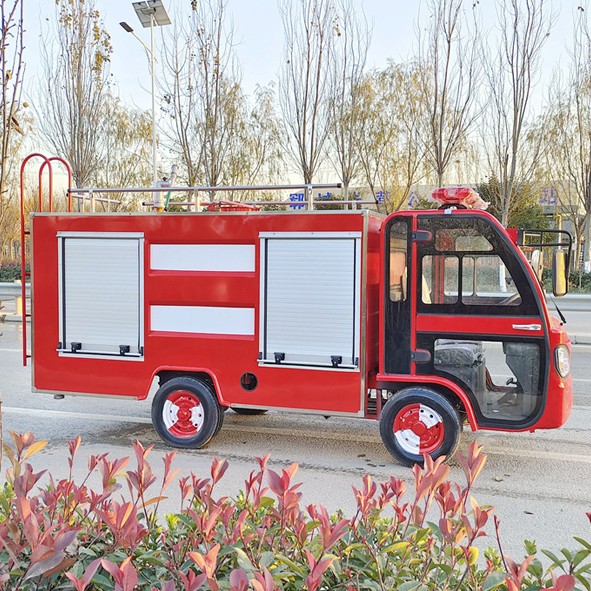

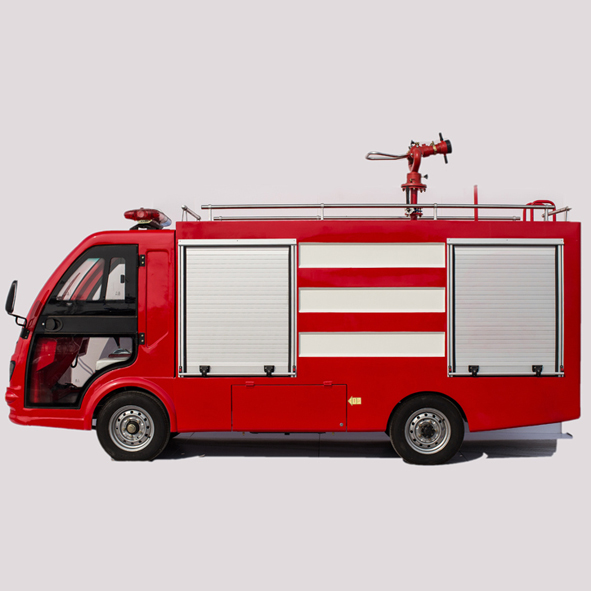

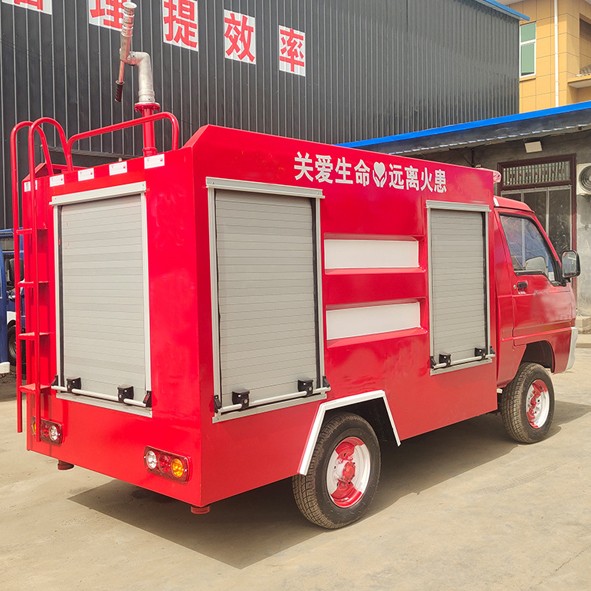

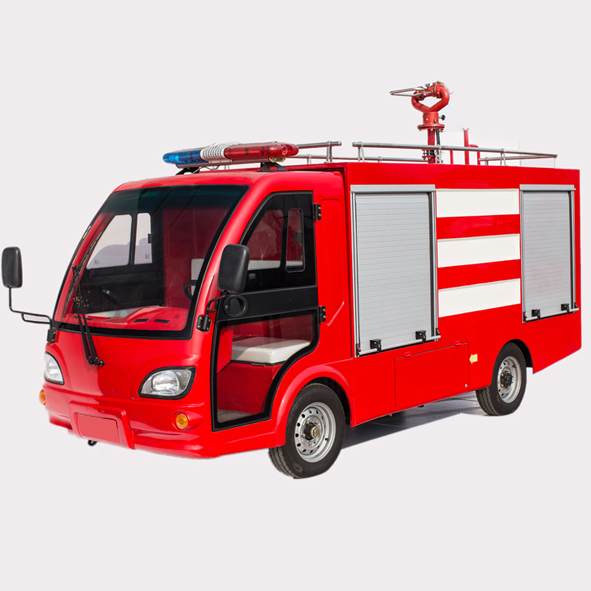

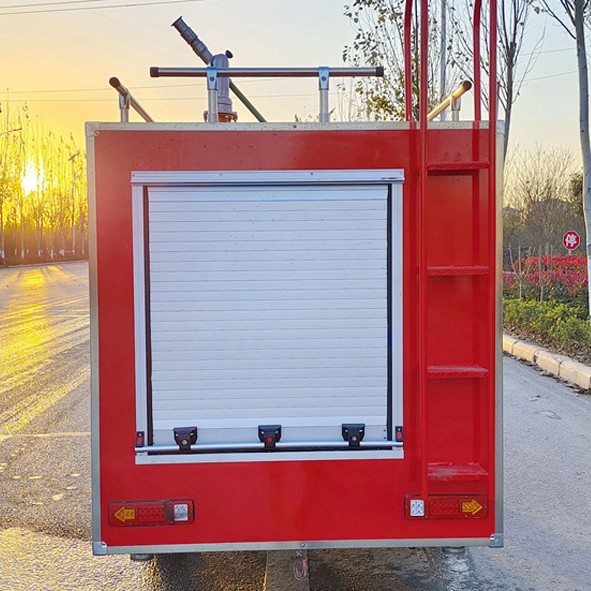

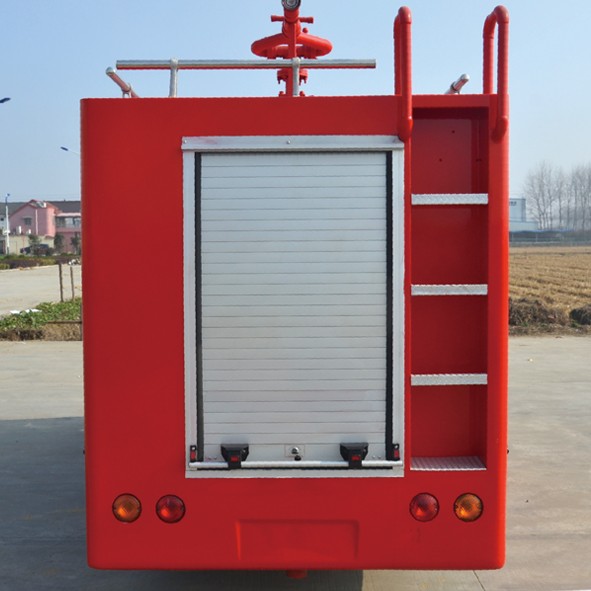

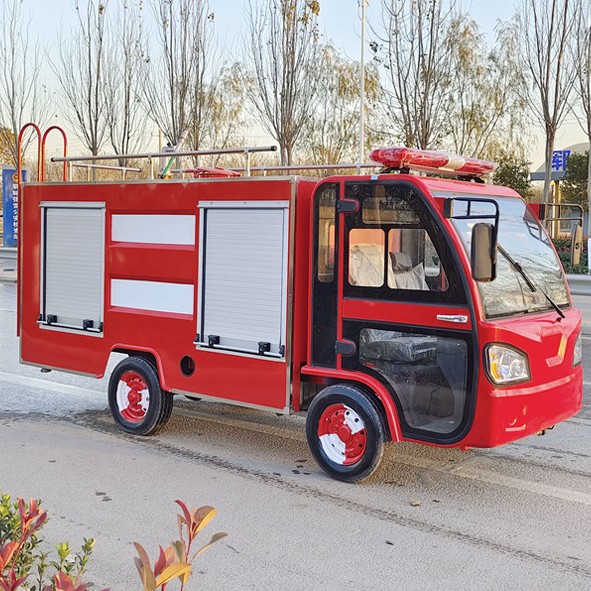

Water tank electric fire truck
This water tank electric fire truck is composed of chassis, crew room, pump room, tank, equipment box, water pump and pipeline, fire water monitor, power take-off transmission device, additional electrical appliances, fire equipment and fixed devices. The lifting pump room and equipment box can adopt integral structure or split structure. The truck cargo bucket is equipped with water tank, high-pressure water mist fire pump, high-pressure water mist hand lift pump Fire fighting tools [Fire hammer: 1 fire Axe: 1 fire shovel, 1 fire hose: 1 set, fire hydrant wrench: 1, crowbar: 1, dry powder fire extinguisher: bottle, fire respirator: 2, flashlight: 1, pager: 1, safety belt: 2, fire gloves: 2 pairs of helmets: 2psc, fire rubber shoes: 2, fire extinguisher support: 2], our company can also customize vehicles according to customer requirements, Meet the practical needs of customers!
Send Inquiry
Product Description
product presentation
This water tank electric fire truck is composed of chassis, crew room, pump room, tank, equipment box, water pump and pipeline, fire water monitor, power take-off transmission device, additional electrical appliances, fire equipment and fixed devices. The lifting pump room and equipment box can adopt integral structure or split structure. The truck cargo bucket is equipped with water tank, high-pressure water mist fire pump, high-pressure water mist hand lift pump Fire fighting tools [Fire hammer: 1 fire Axe: 1 fire shovel, 1 fire hose: 1 set, fire hydrant wrench: 1, crowbar: 1, dry powder fire extinguisher: bottle, fire respirator: 2, flashlight: 1, pager: 1, safety belt: 2, fire gloves: 2 pairs of helmets: 2psc, fire rubber shoes: 2, fire extinguisher support: 2], our company can also customize vehicles according to customer requirements, Meet the practical needs of customers!
Product parameters
| Shape: long X wide X Height (mm) | 4800×1430×2500 |
| Wheelbase(mm) | 2320 |
| Front wheel (mm) | 1220 |
| Rear wheel (mm) | 1275 |
| Minimum ground clearance(mm) | 160 |
| Curb weight of complete vehicle (kg) | 1700 |
| Full load mass (kg) | 2900 |
| Maximum speed (km / h) | 25 |
|
Maximum climbing gradient (full load%) |
15 |
| Minimum turning radius (m) | 5.5 |
| Braking distance(v = 20km /h)(m) | ≤5m |
| Continuous mileage(km) | ≤80 |
| Rated power (kw) | 5kW DC |
| Rated voltage (V) | 72V |
| Rated speed (R/min) | 2800 |
| Motor type | Series excited DC brush |
| Charger (V / a) | 72/30 |
| Controller (V /a) | 72/400 inbors |
| Battery (ah) | Maintenance free 200ah |
| External noise DB | ≤68 |
| braking system | Front and rear wheel hydraulic braking |
| steering system | Electric steering assist system |
| Water tank volume | 1000 litres |
| Model of complete machine | JBQ5.5/9.0 |
| engine type | Single cylinder gasoline engine |
| Engine model | 13HP Zongshen engine |
| Engine power | 9.6KW/13HP |
| weight | 63kg |
| Connection mode of suction pipe | Threaded type |
| Outlet pressure | 0.55MPa |
| Dust | 45m |
| Rated flow | 4.75m³/h |
| Diversion mode | Rotary vane vacuum pump |
| Maximum suction depth | 7m |
| Diversion time | ≤18s |
| nlet and outlet pipe diameter | 65mm |
| Start mode | Self return hand rope start, electric start |
| Fire axe | 1 |
| Fire hose | 3 Discs |
| Fire wrench | 1 |
| Fire tongs | 1 |
| Fire water gun | 1 piece |
| Fire fighting shovel | 1 |
| Fire extinguisher (4kg) | 2 bottles |
Product features and applications
The most remarkable advantages of this water tank electric fire truck are flexibility, low noise, energy saving and improving work efficiency. It is suitable for use in places with a large number of people. Walking through the busy streets, there will be no huge noise. The electric fire truck has low noise and will not affect the daily life of residents when used. The car is flexible. It can cross narrow streets and roads and control the fire at the first time. It is an environmentally friendly electric passenger car specially designed for communities, warehouses, hotels, tourist attractions, parks, large amusement parks, schools, hospitals, large factories and many other places.
Product details
Company size
Delivery of shipments and services
FAQ
Q1 How to place an order?
1) Contact customer service to confirm the freight and product model, configuration, quantity and other details (you can also arrange your own freight forwarder);
2) We provide you with a proforma invoice containing all product details in accordance with your final decision;
3) You need to arrange 30% payment to our bank account, then we will prepare the product to start production (the cycle is generally about 10 days, can be specially configured for your order quantity delivery);
4) After the product is completed, we will pay the remaining payment and arrange delivery by our forwarder (or we can provide relevant information and arrange forwarder transportation by ourselves).
5) Upon completion of this process, customer service will track the location of the product and notify you of its imminent arrival and arrival so that you can quickly prepare for customs clearance and other related issues.
Q2 What does your FOB reference price include?
A: FOB includes costs only. If you do not have your own freight forwarder, please provide us with the port country/region near you and we will quote cif including freight.
Q3 What is your warranty service?
A: We offer a one-year warranty for the motors, batteries and controllers.
Q4 Why can't I use Courier service and order by myself?
A: Packaged, the product is bulky and contains a large number of batteries. It can be transported by rail but the cost is too high (the appearance of the product may wear out).
Q5 What if I still insist on home delivery?
A: Please provide your address and then we can check the details and arrange.
Q6 What is your production/delivery time for ?
A: The production/delivery time will be controlled within 30 days (generally 10 days can be shipped, simple configuration is 2-3 days).
Q7 Do you test everything before shipping?
A: Yes, we have passed 100% testing before shipment (basic equipment testing also includes roads, hill climbing, rain, water crossing roads, etc.).
Q8 Do you support sample shipment?
A: Yes, we support shipping samples to the port.
Q9 how to guarantee my order after placing order?
A: We will track your order and provide production videos throughout the process. After delivery, the location of the item will also be tracked and provided to you until you receive the item. There will also be a dedicated customer service to receive your follow-up feedback.
Q10 Can you produce Q10 according to the sample?
A: Yes, we can produce according to your samples or technical drawings. We can build molds and fixtures.
Q11 What are your payment terms?
Answer: 30% as deposit, and pay 70% balance before delivery. We will show you photos and videos of the products and packaging before
