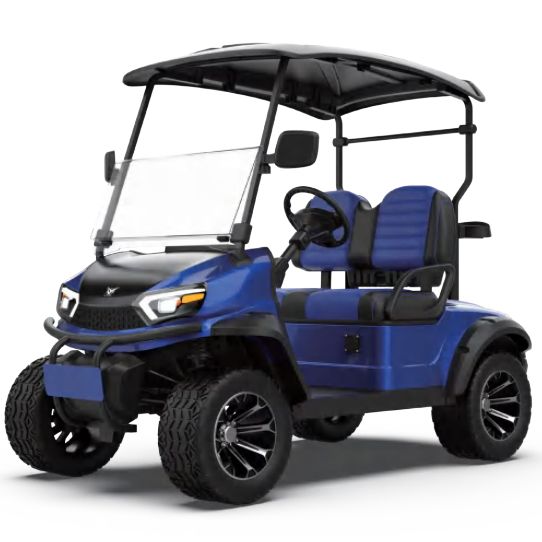

GOLF CART
GOLF CART is an environment-friendly short-distance passenger vehicle specially designed and developed for golf courses.It is mainly suitable for Many application scenarios such as golf courses,resorts,hotels,clubs,villas,scenic spots,industrial parks,airports,etc.
Send Inquiry
Product Description
As the professional manufacturer, we would like to provide you GOLF CART.
Depending on the advanced processing facilities,an experienced hi-tech team and the excellent after-sale service,marked all over the country as well as exported to the overseas and we have achieved a create reputation from our customers. We would like to create a wonderful future with numerous customers together.
-
Seat
-
Headlights
-
Wheel
-
Independent Suspension
-
Brake
-
Monitor
-
Steering wheel
-
Taillight
-
Front/Rear Disc Brake
-
Seat belt
HKEV-GRL2
| Dverall Dimension | 2480*1330*2000mm |
| Passengers Capacity | 2 |
| Max.Speed | 48km/h & 25km/h |
| Max.Travelling Range | 80-100km |
| Slope Climbing Capacity | 30% |
| Turning Radius | 3m |
| Ground Clearance | 150mm |
| Brake Distance | ≤5m |
| Wheelbase | 1690mm |
| Front/Rear Tread | 940/1030mm |
| Weight | 500kg |
| Tire | 20*10-12，with aluminium alloy wheel rim |
Electric system
| Motor | AC,48v,5km |
| Controller | 48V,350A-400A |
| Battery Type | lithium acid battery,150Ah 8v*6pcs |
| Charger | Intelligent high-frequency car charger |
| Charging Time | 6-8 hours |
Motivation control
| Braking System | Front/Rear Disc Brake,EMB system |
| Front Axle and Suspension | Independence suspension |
| Rear Axle and Suspension | Torsion beam |
| Steering | Rack &Pinion”Steering |
Exterior
| Display | LCD instrument, show time, speed, driving range, battery capacity, etc |
| Light | Front & rear combination LED lights |
| Seat | Bus cold foam sponge + high-resilience PU leather fabric |
| Body Material | Steel frame + ABS engineering plastic molding material |
HKEV-GRL22
| Dverall Dimension | 2980*1330*2050mm |
| Passengers Capacity | 4 |
| Max.Speed | 40km/h & 25km/h |
| Max.Travelling Range | 80-100km |
| Slope Climbing Capacity | 30% |
| Turning Radius | 3m |
| Ground Clearance | 150mm |
| Brake Distance | ≤4m |
| Wheelbase | 1690mm |
| Front/Rear Tread | 940/1030mm |
| Weight | 500kg |
| Tire | 20*10-12，with aluminium alloy wheel rim |
Electric system
| Motor | AC,48v,5km |
| Controller | 48V,350A-400A |
| Battery Type | lithium acid battery,150Ah 8v*6pcs |
| Charger | Intelligent high-frequency car charger |
| Charging Time | 6-8 hours |
Motivation control
| Braking System | Front/Rear Disc Brake,EMB system |
| Front Axle and Suspension | Independence suspension |
| Rear Axle and Suspension | Torsion beam |
| Steering | Rack &Pinion”Steering |
Exterior
| Display | LCD instrument, show time, speed, driving range, battery capacity, etc |
| Light | Front & rear combination LED lights |
| Seat | Bus cold foam sponge + high-resilience PU leather fabric |
| Body Material | Steel frame + ABS engineering plastic molding material |
HKEV-GRL42
| Dverall Dimension | 3820*1330*2060mm |
| Passengers Capacity | 6 |
| Max.Speed | 40km/h & 25km/h |
| Max.Travelling Range | 80-100km |
| Slope Climbing Capacity | 30% |
| Turning Radius | 4m |
| Ground Clearance | ≥125mm |
| Brake Distance | ≤4m |
| Wheelbase | 2440mm |
| Front/Rear Tread | 940/1030mm |
| Weight | 600kg |
| Tire | 20*10-12，with aluminium alloy wheel rim |
Electric system
| Motor | AC,48v,5km |
| Controller | 48V,350A-400A |
| Battery Type | lithium acid battery,150Ah 8v*6pcs |
| Charger | Intelligent high-frequency car charger |
| Charging Time | 6-8 hours |
Motivation control
| Braking System | Front/Rear Disc Brake,EMB system |
| Front Axle and Suspension | Independence suspension |
| Rear Axle and Suspension | Torsion beam |
| Steering | Rack &Pinion”Steering |
Exterior
| Display | LCD instrument, show time, speed, driving range, battery capacity, etc |
| Light | Front & rear combination LED lights |
| Seat | Bus cold foam sponge + high-resilience PU leather fabric |
| Body Material | Steel frame + ABS engineering plastic molding material |
HKEV-GRL2
| Dverall Dimension | 2480*1330*2000mm |
| Passengers Capacity | 2 |
| Max.Speed | 40km/h & 25mph |
| Max.Travelling Range | 80-100km |
| Slope Climbing Capacity | 30% |
| Turning Radius | 3m |
| Ground Clearance | ≥150mm |
| Brake Distance | ≤4m |
| Wheelbase | 1690mm |
| Front/Rear Tread | 940/1030mm |
| Weight | 500kg |
| Tire | 20*10-12，with aluminium alloy wheel rim |
Electric system
| Motor | AC,48v,5km |
| Controller | 48V,350A-400A |
| Battery Type | lithium acid battery,150Ah 8v*6pcs |
| Charger | Intelligent high-frequency car charger |
| Charging Time | 6-8 hours |
Motivation control
| Braking System | Front/Rear Disc Brake,EMB system |
| Front Axle and Suspension | Independence suspension |
| Rear Axle and Suspension | Torsion beam |
| Steering | Rack &Pinion”Steering |
Exterior
| Display | LCD instrument, show time, speed, driving range, battery capacity, etc |
| Light | Front & rear combination LED lights |
| Seat | Bus cold foam sponge + high-resilience PU leather fabric |
| Body Material | Steel frame + ABS engineering plastic molding material |
HKEV-GRL22
| Dverall Dimension | 2980*1330*2050mm |
| Passengers Capacity | 4 |
| Max.Speed | 40km/h & 25km/h |
| Max.Travelling Range | 80-100km |
| Slope Climbing Capacity | 30% |
| Turning Radius | 3m |
| Ground Clearance | 150mm |
| Brake Distance | ≤4m |
| Wheelbase | 1690mm |
| Front/Rear Tread | 940/1030mm |
| Weight | 580kg |
| Tire | 20*10-12，with aluminium alloy wheel rim |
Electric system
| Motor | AC,48v,5km |
| Controller | 48V,350A-400A |
| Battery Type | lithium acid battery,150Ah 8v*6pcs |
| Charger | Intelligent high-frequency car charger |
| Charging Time | 6-8 hours |
Motivation control
| Braking System | Front/Rear Disc Brake,EMB system |
| Front Axle and Suspension | Independence suspension |
| Rear Axle and Suspension | Torsion beam |
| Steering | Rack &Pinion”Steering |
Exterior
| Display | LCD instrument, show time, speed, driving range, battery capacity, etc |
| Light | Front & rear combination LED lights |
| Seat | Bus cold foam sponge + high-resilience PU leather fabric |
| Body Material | Steel frame + ABS engineering plastic molding material |
