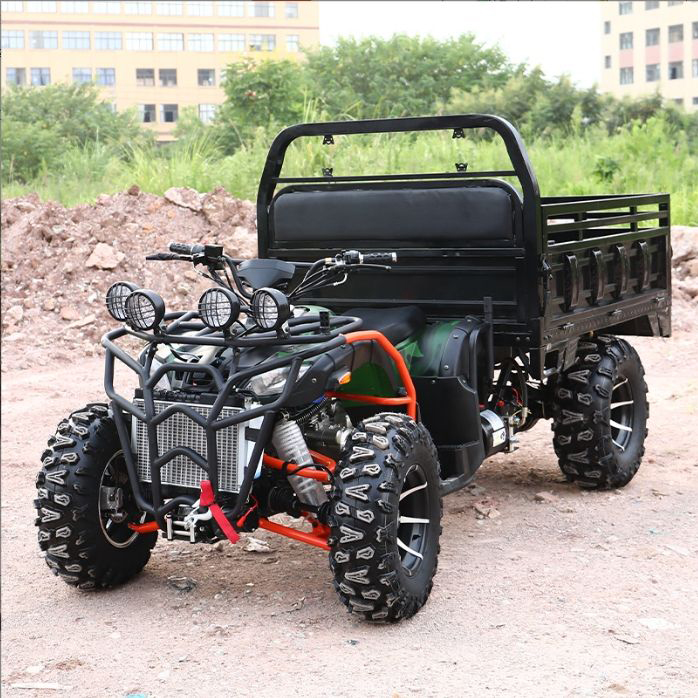

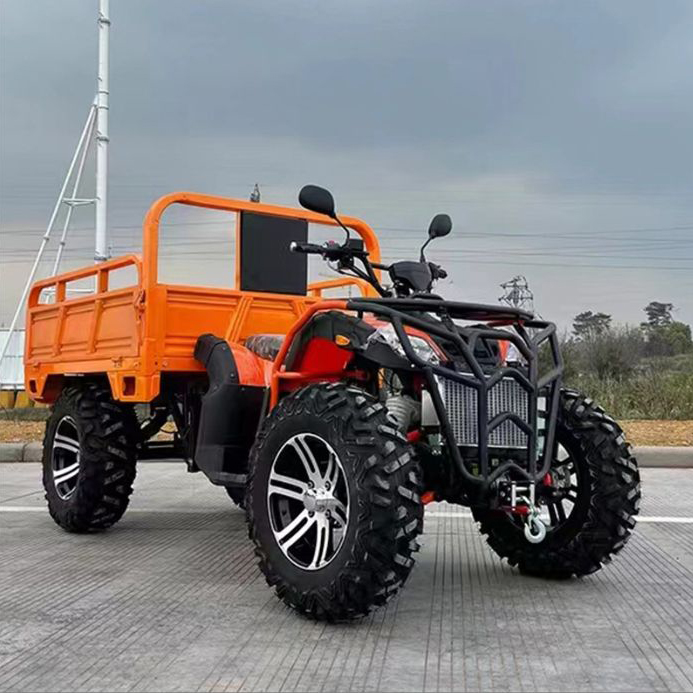

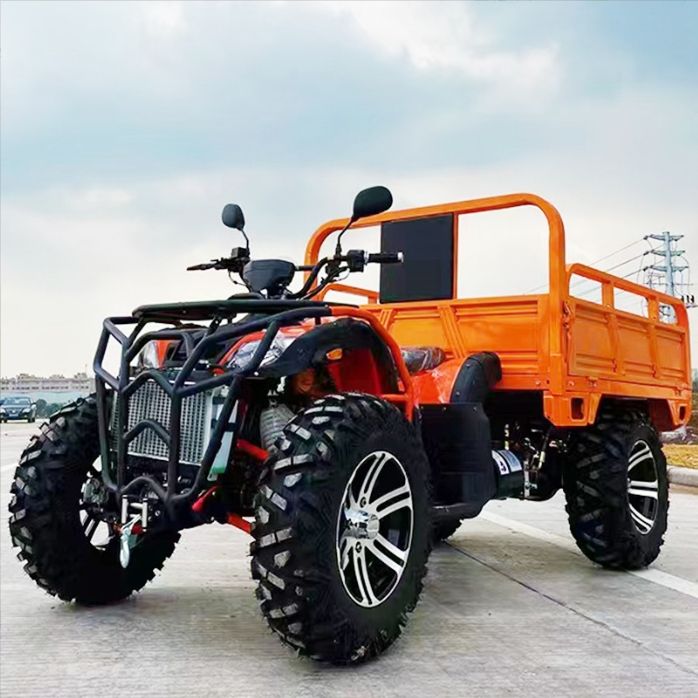

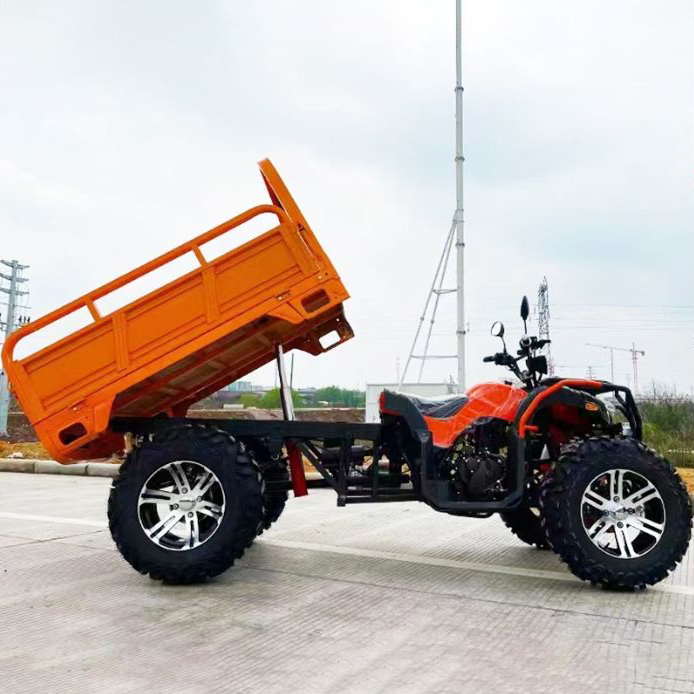

Four-wheel off-road farmer's vehicle

As the professional manufacturer, we would like to provide you Four-wheel off-road farmer's vehicle.

Send Inquiry

Product Description

As the professional manufacturer, we would like to provide you Four-wheel off-road farmer's vehicle. Over the years, the company puts customers first, and has established product pre-sales, sales, and after-sales service specifications to meet customer requirements in an all-round and whole process, so that our products and services have won the trust of customers and established a strong relationship with customers. A long-term cooperative and mutually beneficial relationship has been established.

Types of section	Technical Specifications Items	unit
Vehicle Parameters	Length × width × height	2900×1250×1450mm
	Wheelbase	1950mm
	Front wheel track	970mm
	Rear wheel track	990mm
	Minimum ground clearance	220mm
	Seat height	780±20mm
	Chassis height	230mm
	Handle height	1100mm
	Packaging dimensions, length × width × height	2900×1250×820mm
	Front mechanical suspension travel	75mm
	Rear mechanical suspension travel	90mm
	Minimum turning diameter	3500±500mm
	Steering angle	<45°（actual39°）
	Side slip	<5m/km
	Rated load	300kg
	Empty vehicle net weight	320kg
	Packing gross weight	360kg
	Brake type (front/rear)	Front hydraulic brake
	Brake operation method (front/rear)	Rear disc brake, rear drum brake, foot brake, two optional
	Rim type (front/rear)	10-inch wheel hub can be upgraded to 12-inch aluminum wheel
	Tire specifications (front/rear)	Vacuum tire/front-23×7-10/rear-22×10-10
	Tire pressure (front/rear)	9P.S.I
	Transmission method	Shaft drive
Engine parameters	Model	ZS170MM
	Type	Single cylinder, 4-stroke, 4-valve，water-cooling, camshaft upward.
	Production unit	Zongshen
	Cylinder bore × stroke	76×64
	Displacement	246.3
	Compression ratio	10.5:1
	Gearshift method	Constant mesh, two stage transmission ,6-speed Gearshift
	Maximum power (kw/r/min)	11.5/7000
	Maximum torque (N.m/r/min)	19.5/5000
	Bore and stroke (mm×mm)	1700±100r/min
	Minimum fuel consumption rate	≤354g/kW·h
	Fuel brand	93# and above
	Lubrication method	Pressure and Splash
	Lubricant brand	15W/40-SE (-10 to 40℃) HQB-10 (<-10℃)
	Clutch type	Manual Wet Multi-Plate
Components Parameters	Starting method	Electric start
	Ignition method	CFW capacitor energy storage
	Chemistry/injector model or type description	PD30
	Spark plug model or type description	A7RTC
	Battery specifications	12V, 9AH maintenance-free starting battery
	Headlight model or type description	12V55-18W
Technical Parameters	Maximum vehicle speed	50km/h
	Starting performance	15S
	Braking performanceBraking balance	≤5.9m/30m/km/h
		Front wheel load ratio	≥60%
		Rear wheel load ratio	≥55%
	Climbing performanceParking performance	Front wheel (force difference is greater than the larger one)	≤20%
		Rear wheel (force difference is greater than the larger one)	≤24%
	Emission index	30°°
		18°
	Maximum noise db (A)Starting acceleration performance (S)	CO(%)	≤2
		HC(PPm)	≤250
	Overtaking acceleration performance (S)	≤82 dB(A)
	Fuel tank capacity	≤18
	Front/rear shock absorber type	≤15
AccessoriesParameters	Exhaust muffler type	5L
	Front shock absorber	Hydraulic damping shock absorber
	Length × width × height	Cylinder type impedance composite muffler
	Wheelbase	L=370
